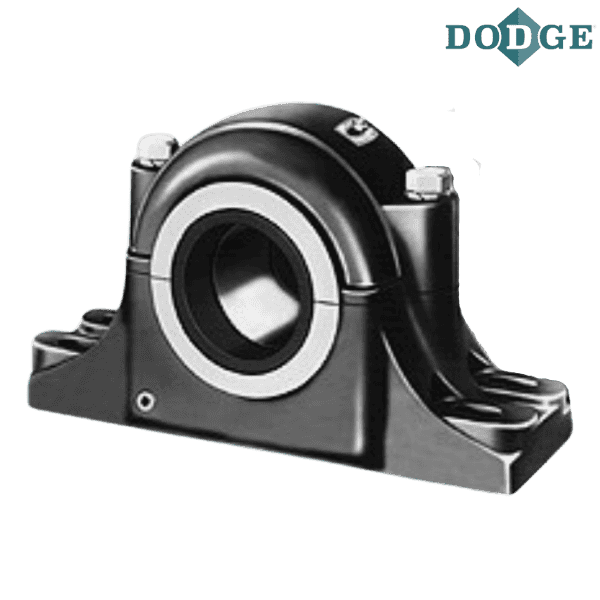

042439 DODGE - SP4B530-SAFS-503TT

Brand - DODGE
Item Number - 042439 DODGE - SP4B530-SAFS-503TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B530-SAFS-503TT
Shaft Size (inch) - 5.1875
Housing Number - 530
Housing Item Number - 044236 DODGE - SH4S-530-SAFS
Approximate Weight (lbs) - 220
Dimension of A With Triple-Tect Seal (Std.) inch - 8.75
Dimension of A With LER/ER Seal (Optional) inch - 8.16
Dimension of A With Auxiliary Seal (Optional) inch - 10.69
Overall Length (B) inch - 21.25
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 16.75
Bolt to Bolt Maximum Distance (D max) inch - 18.5
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.5
Overall Height (J) inch - 12.81
K (inch) - 4.06
L (inch) ** - 5.77
Base to Center Height (M) inch - 6.31
P (inch) - 14.5
Q (inch) *** - 2.69
S (inch) **** - 0.19
W (inch) - 2.03
Z (inch) - 1.19

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
