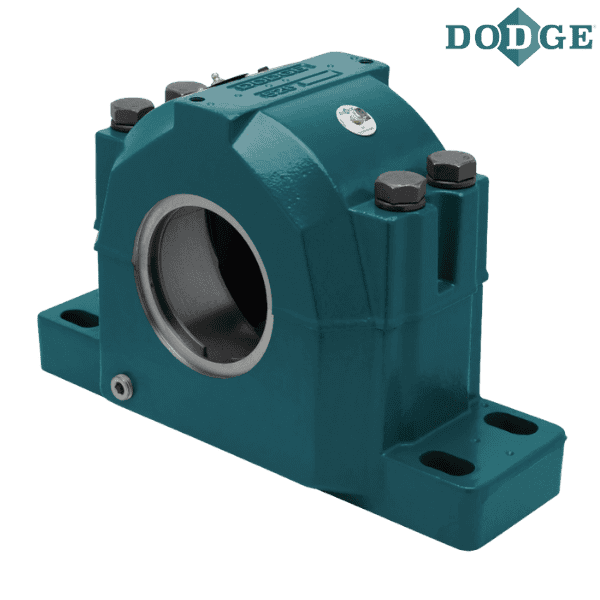

042445 DODGE - P4B544-USAF-708TT

Brand - DODGE
Item Number - 042445 DODGE - P4B544-USAF-708TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

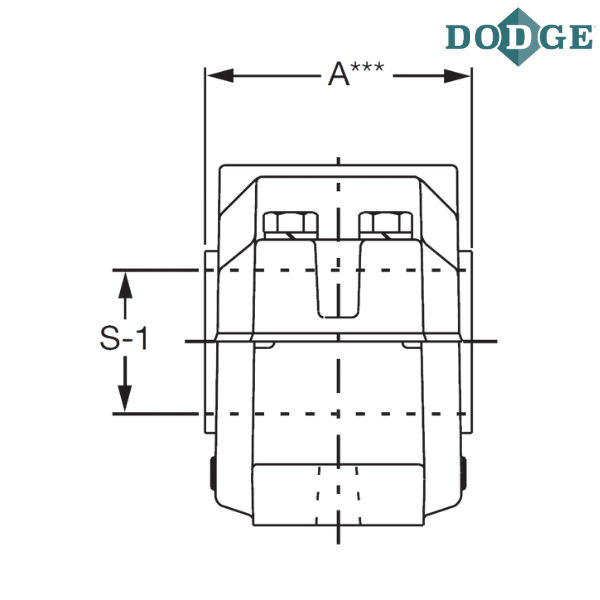

Shaft Diameter (S-1) inch - 7.5
Description - P4B544-USAF-708TT
Housing Item Number - 044054 DODGE - H4S-544S-USAF
Bearing Item Number - 422029 DODGE - BRG22244KC3
Dynamic Capacity (C) lbf - 365000
Maximum RPM (Grease) - 950
SNW Item Number - 043627 DODGE - SNW44X708
TRIPLE-TECT Seal Item Number - 043567 DODGE - 76TT708
LER Seal Item Number ** - 042539 DODGE - 76LER708
Auxiliary (Taconite) Seal Item Number - 040896 DODGE - 76AUX708
End Cover Item Number - 040684 DODGE - EC76

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
708 - 7 1/2”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

*** Images are for representation purposes only
