042449 DODGE - P4B048-USAF-815TT

Brand - DODGE
Item Number - 042449 DODGE - P4B048-USAF-815TT

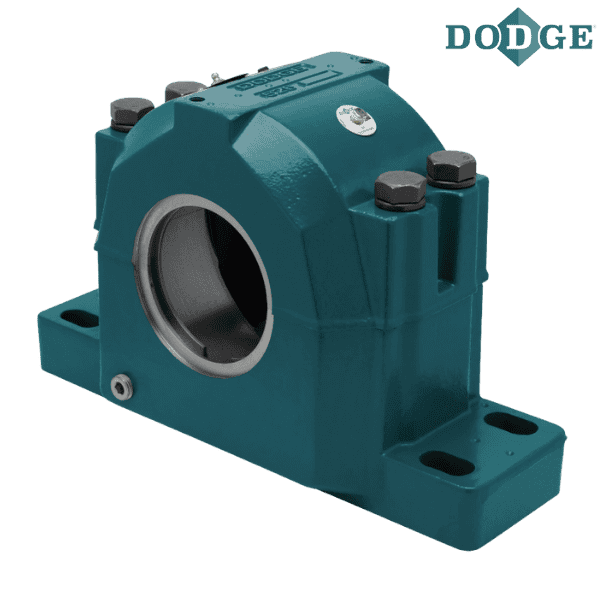

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

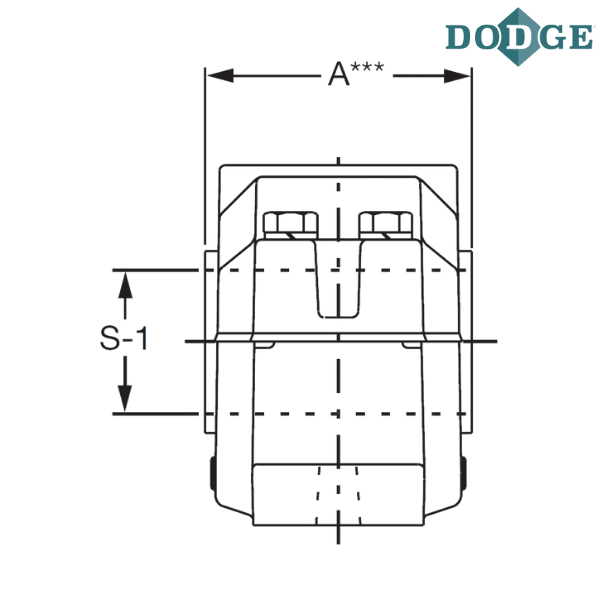

Shaft Diameter (S-1) inch - 8.9375
Description - P4B048-USAF-815TT
Housing Item Number - 044200 DODGE - H4S-048-USAF
Bearing Item Number - 422031 DODGE - BRG23048KC3
Dynamic Capacity (C) lbf - 260000
Maximum RPM (Grease) - 950
SNW Item Number - 043631 DODGE - SNP3048X815
TRIPLE-TECT Seal Item Number - 043571 DODGE - 90TT815
LER Seal Item Number* - 042544 DODGE - 90LER815
End Cover Item Number - 042368 DODGE - EC90

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
0XX - For Adapter Mounted 23000K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
815 - 8 15/16”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
0XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
230 - 23000 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
