042463 DODGE - P4B056-USAF-1007TT

Brand - DODGE
Item Number - 042463 DODGE - P4B056-USAF-1007TT

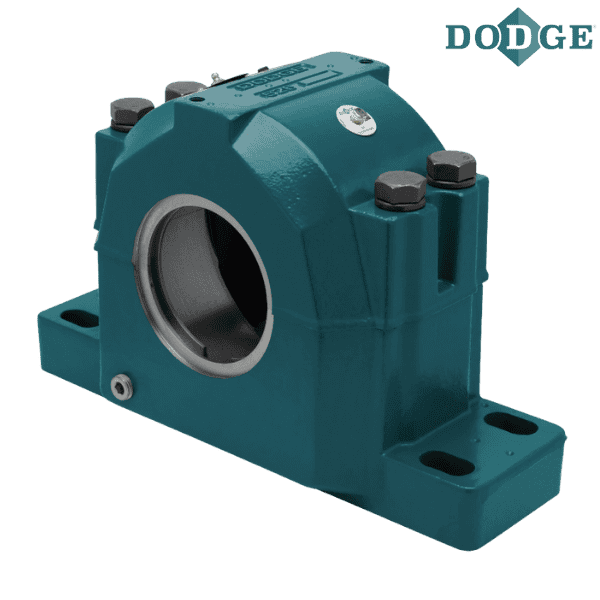

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

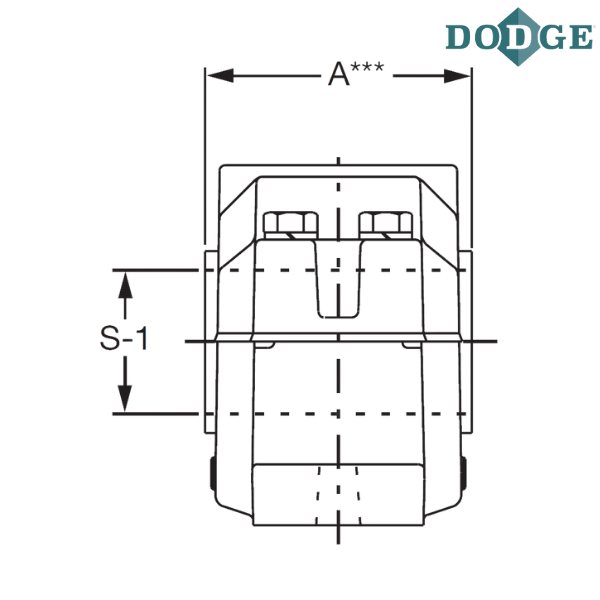

Shaft Diameter (S-1) inch - 10.4375
Description - P4B056-USAF-1007TT
Housing Item Number - 044201 DODGE - H4S-056L-USAF
Bearing Item Number - 422030 DODGE - BRG23056KC3
Dynamic Capacity (C) lbf - 345000
Maximum RPM (Grease) - 850
SNW Item Number - 043580 DODGE - SNP3056X1007
TRIPLE-TECT Seal Item Number - 047940 DODGE - 94TT1007
LER Seal Item Number* - 042036 DODGE - 94LER1007
End Cover Item Number - 040689 DODGE - EC94

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
0XX - For Adapter Mounted 23000K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
1007 - 10 7/16”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
0XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
230 - 23000 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
