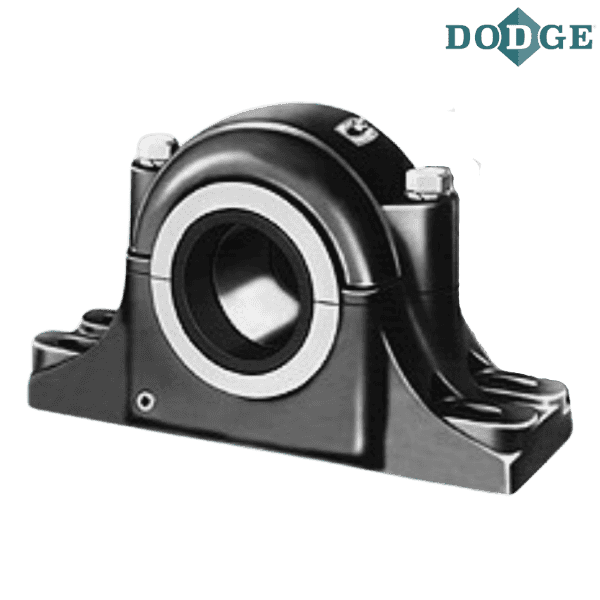

042569 DODGE - SP4B528-SAFS-415TT

Brand - DODGE
Item Number - 042569 DODGE - SP4B528-SAFS-415TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B528-SAFS-415TT
Shaft Size (inch) - 4.9375
Housing Number - 528
Housing Item Number - 042460 DODGE - SH4S-528-SAFS
Approximate Weight (lbs) - 175
Dimension of A With Triple-Tect Seal (Std.) inch - 8.09
Dimension of A With LER/ER Seal (Optional) inch - 7.5
Dimension of A With Auxiliary Seal (Optional) inch - 10.33
Overall Length (B) inch - 20.13
C (inch) - 5.88
Bolt to Bolt Minimum Distance (D min) inch - 15.63
Bolt to Bolt Maximum Distance (D max) inch - 17.38
E (inch) - 3.78
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.5
Overall Height (J) inch - 12
K (inch) - 3.69
L (inch) ** - 5.36
Base to Center Height (M) inch - 6
P (inch) - 13.56
Q (inch) *** - 2.53
S (inch) **** - 0.19
W (inch) - 2.03
Z (inch) - 1.19

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
