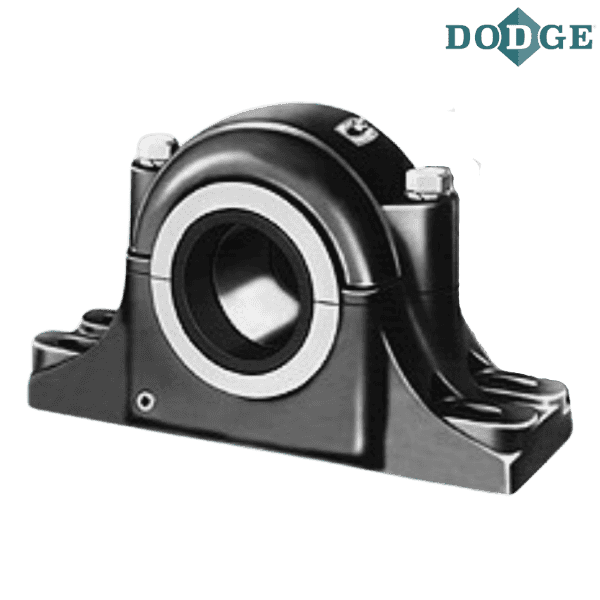

042571 DODGE - SP4B534-SAFS-515TT

Brand - DODGE
Item Number - 042571 DODGE - SP4B534-SAFS-515TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B534-SAFS-515TT
Shaft Size (inch) - 5.9375
Housing Number - 534
Housing Item Number - 042469 DODGE - SH4S-534-SAFS
Approximate Weight (lbs) - 310
Dimension of A With Triple-Tect Seal (Std.) inch - 9.91
Dimension of A With LER/ER Seal (Optional) inch - 9.13
Dimension of A With Auxiliary Seal (Optional) inch - 11.88
Overall Length (B) inch - 24.75
C (inch) - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 19.38
Bolt to Bolt Maximum Distance (D max) inch - 21.63
E (inch) - 4.25
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.88
Overall Height (J) inch - 14.56
K (inch) - 4.63
L (inch) ** - 6.44
Base to Center Height (M) inch - 7.06
P (inch) - 16.81
Q (inch) *** - 3.13
S (inch) **** - 0.19
W (inch) - 2.19
Z (inch) - 1.56

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
