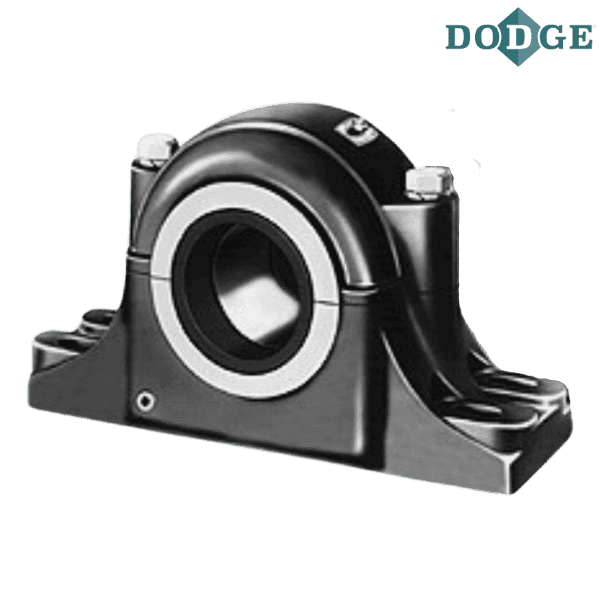

042575 DODGE - SP4B526-SAFS-408TT

Brand - DODGE
Item Number - 042575 DODGE - SP4B526-SAFS-408TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B526-SAFS-408TT
Shaft Size (inch) - 4.5
Housing Number - 526
Housing Item Number - 042455 DODGE - SH4S-526-SAFS
Approximate Weight (lbs) - 160
Dimension of A With Triple-Tect Seal (Std.) inch - 8.47
Dimension of A With LER/ER Seal (Optional) inch - 7.88
Dimension of A With Auxiliary Seal (Optional) inch - 9.45
Overall Length (B) inch - 18.38
C (inch) - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 14.5
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.75
H (inch) - 2.5
Overall Height (J) inch - 11.56
K (inch) - 3.88
L (inch) ** - 4.94
Base to Center Height (M) inch - 6
P (inch) - 12.81
Q (inch) *** - 2.41
S (inch) **** - 0.19
W (inch) - 2.34
Z (inch) - 1.28

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
