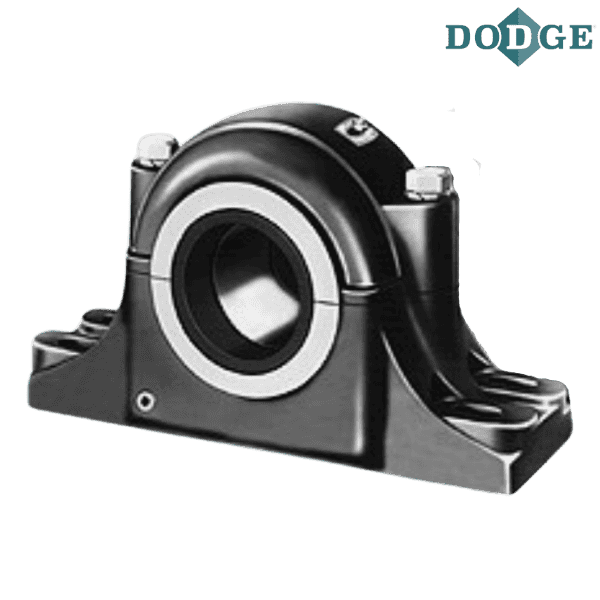

042581 DODGE - SP4B544-SAFS-715TT

Brand - DODGE
Item Number - 042581 DODGE - SP4B544-SAFS-715TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B544-SAFS-715TT
Shaft Size (inch) - 7.9375
Housing Number - 544
Housing Item Number - 042477 DODGE - SH4S-544-SAFS
Approximate Weight (lbs) - 640
Dimension of A With Triple-Tect Seal (Std.) inch - 12.09
Dimension of A With LER/ER Seal (Optional) inch - 11.63
Dimension of A With Auxiliary Seal (Optional) inch - 13.2
Overall Length (B) inch - 32.75
C (inch) - 8.75
Bolt to Bolt Minimum Distance (D min) inch - 25.13
Bolt to Bolt Maximum Distance (D max) inch - 27.88
E (inch) - 5.25
F-Bolt Diameter (inch) - 1.5
G (inch) - 3
H (inch) - 3.88
Overall Height (J) inch - 19.25
K (inch) - 5.75
L (inch) ** - 7.44
Base to Center Height (M) inch - 9.5
P (inch) - 20.75
Q (inch) *** - 3.64
S (inch) **** - 0.19
W (inch) - 3.25
Z (inch) - 1.88

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

***** Images are for representation purposes only
