Description
Brand - DODGE
Item Number - 043404 DODGE - 22220SS307

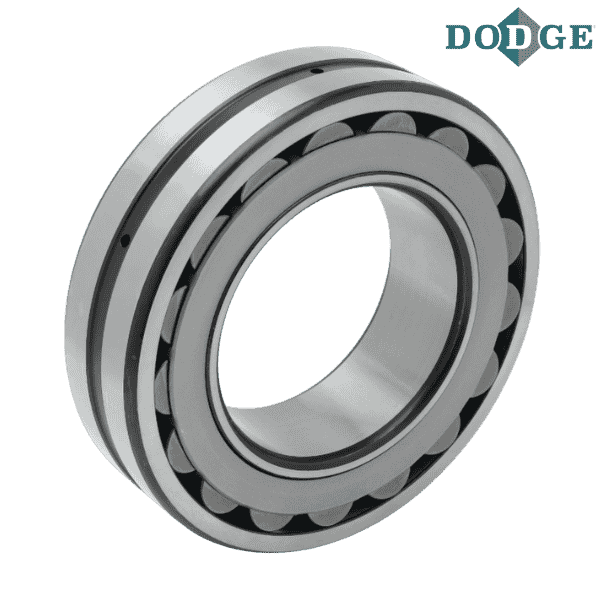

Category - USAF 22200 SPLIT-SPHER Roller Bearings

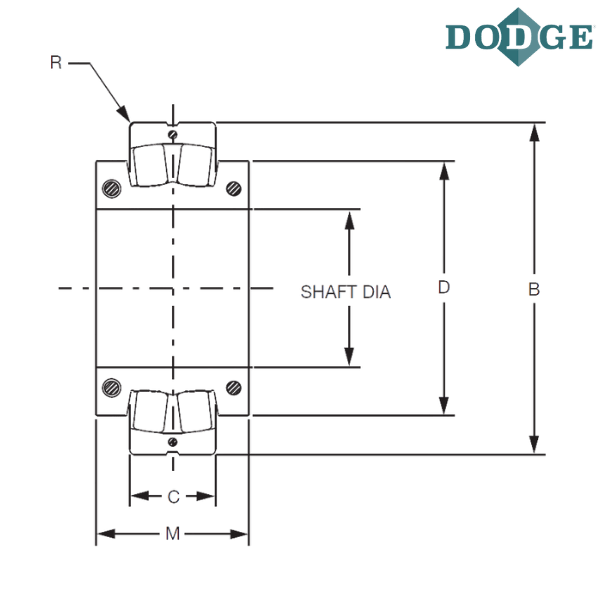

Shaft Diameter (inch) - 3.4375
Housing - 520
Description - 22220SS307
Approximate Weight (lbs) - 14.2
Outer Diameter (B) inch - 7.0866
Outer Diameter (B) mm - 180
C (inch) - 1.811
C (mm) - 46
M (inch) - 2.9921
M (mm) - 76
D (inch) - 4.6457
R (inch) - 0.08
Notes :
SS - SPLIT-SPHER Pillow Block
307 - 3-7/16”
** Images are for representation purposes only
