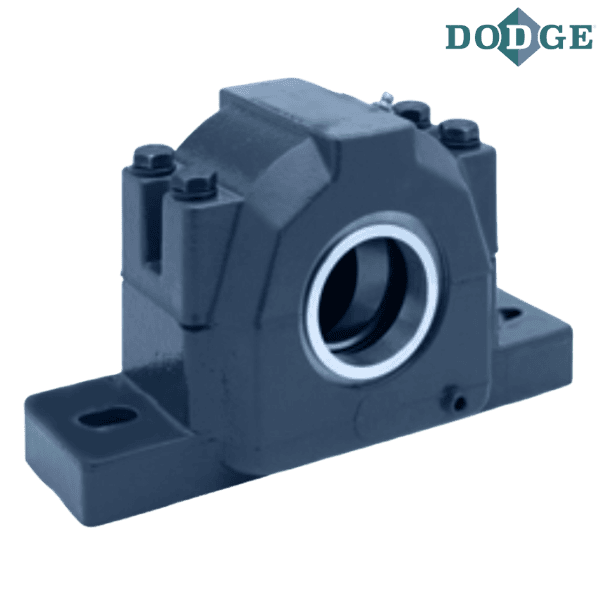

043958 DODGE - P2B13-SS-203

Brand - DODGE
Item Number - 043958 DODGE - P2B13-SS-203
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 2.1875
Description - P2B13-SS-203
Housing W/ Stab Ring Item Number - 043998 DODGE - H2S-513-USAF
Bearing Item Number - 043393 DODGE - BRG13SS203
Dynamic Capacity (C) lbs - 32500
Maximum RPM (Grease) - 2600
Split LER Seal Item Number - 043501 DODGE - 14SS203
Housing - 513

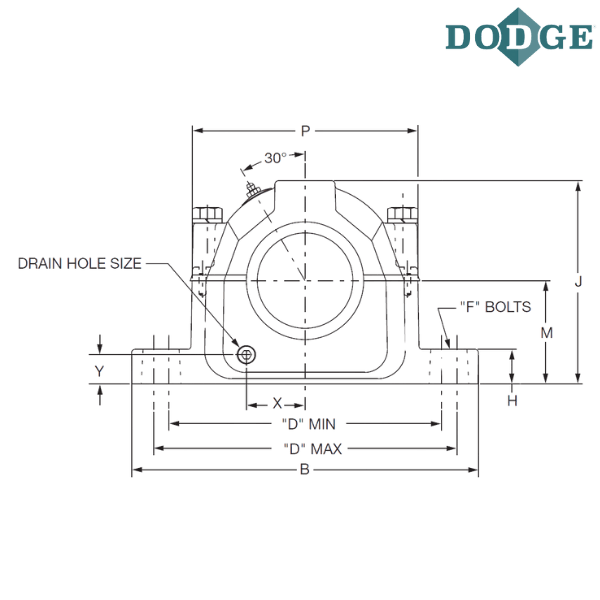

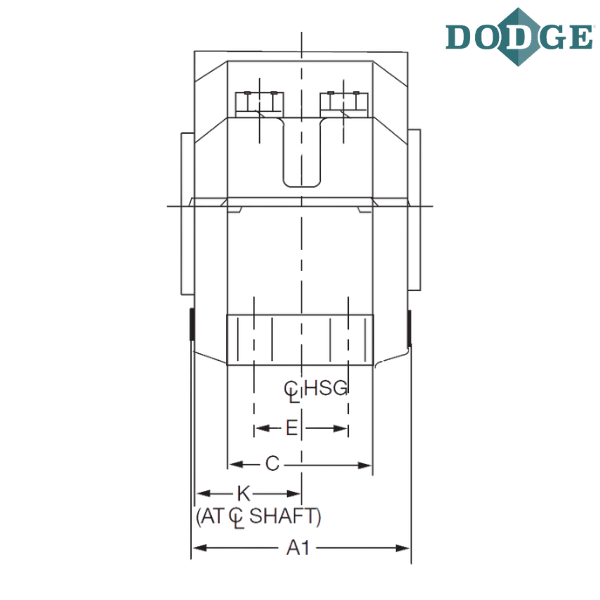

A1 (inch) - 4.64
Overall Length (B) inch - 11
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.13
Bolt to Bolt Maximum Distance (D max) inch - 9.5
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.03
Overall Height (J) inch - 5.94
K (inch) - 2.16
Base to Center Height (M) inch - 3
P (inch) - 6.5

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
203 - 2-3/16”

** Images are for representation purposes only
