043959 DODGE - P2B15-SS-207

Brand - DODGE
Item Number - 043959 DODGE - P2B15-SS-207
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 2.4375
Description - P2B15-SS-207
Housing W/ Stab Ring Item Number - 044000 DODGE - H2S-515-USAF
Bearing Item Number - 043400 DODGE - BRG15SS207
Dynamic Capacity (C) lbs - 39000
Maximum RPM (Grease) - 2350
Split LER Seal Item Number - 043502 DODGE - 20SS207
Housing - 515

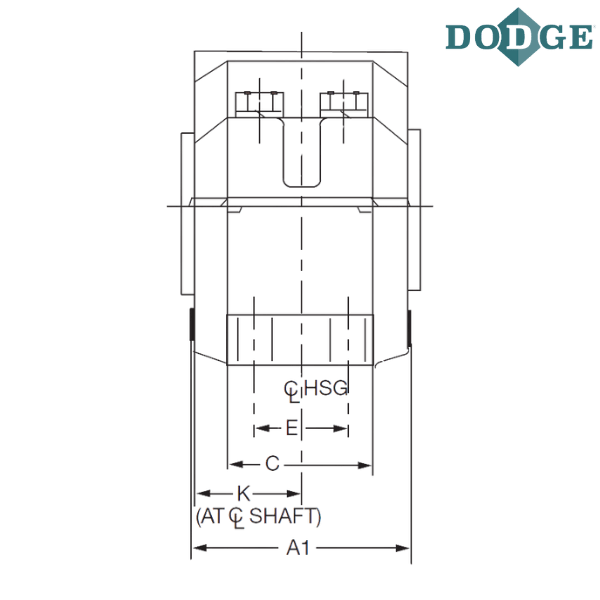

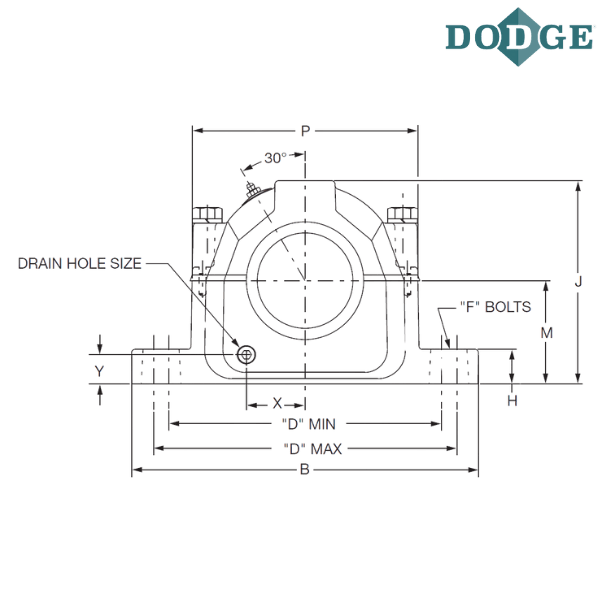

A1 (inch) - 5.2
Overall Length (B) inch - 11.13
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.63
Bolt to Bolt Maximum Distance (D max) inch - 9.63
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.25
Overall Height (J) inch - 6.44
K (inch) - 2.31
Base to Center Height (M) inch - 3.25
P (inch) - 7.06

Notes :

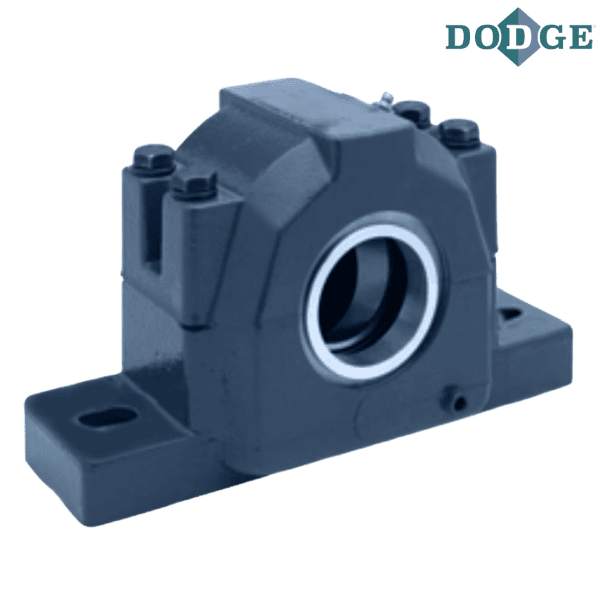

P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
207 - 2-7/16”

** Images are for representation purposes only
