043962 DODGE - P2B18-SS-303

Brand - DODGE
Item Number - 043962 DODGE - P2B18-SS-303
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 3.1875
Description - P2B18-SS-303
Housing W/ Stab Ring Item Number - 044199 DODGE - H2S-518-USAF
Bearing Item Number - 043403 DODGE - BRG18SS303
Dynamic Capacity (C) lbs - 47500
Maximum RPM (Grease) - 2000
Split LER Seal Item Number - 043508 DODGE - 34SS303
Housing - 518

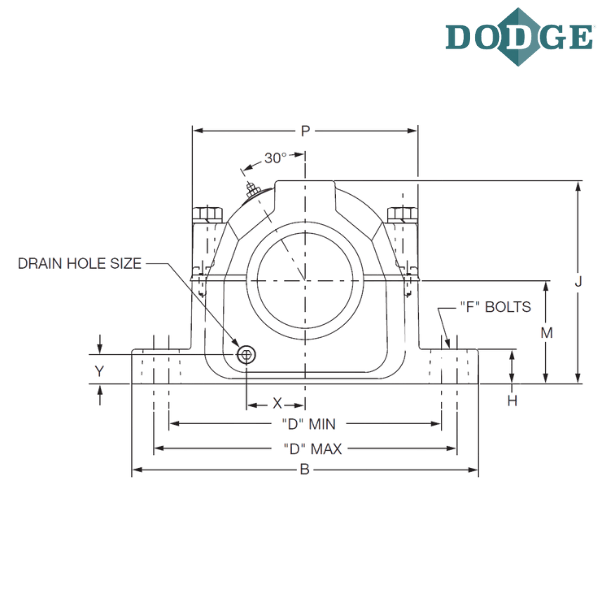

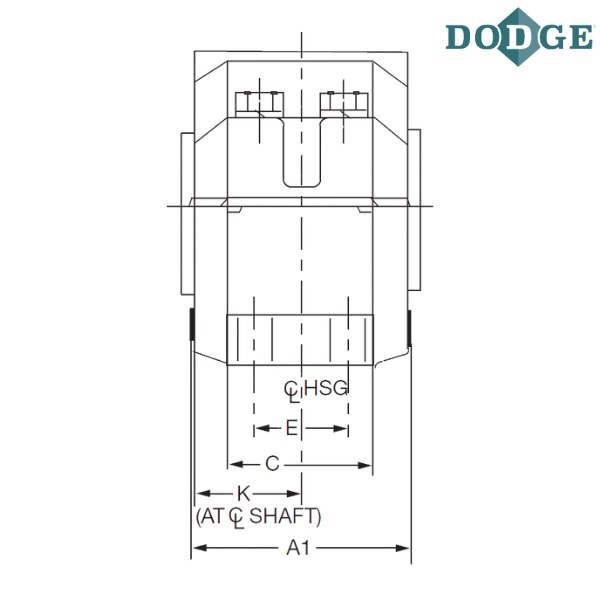

A1 (inch) - 6.16
Overall Length (B) inch - 13.63
C (inch) - 3.88
Bolt to Bolt Minimum Distance (D min) inch - 10.25
Bolt to Bolt Maximum Distance (D max) inch - 11.75
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.44
Overall Height (J) inch - 7.75
K (inch) - 2.84
Base to Center Height (M) inch - 4
P (inch) - 8.66

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
303 - 3-3/16”

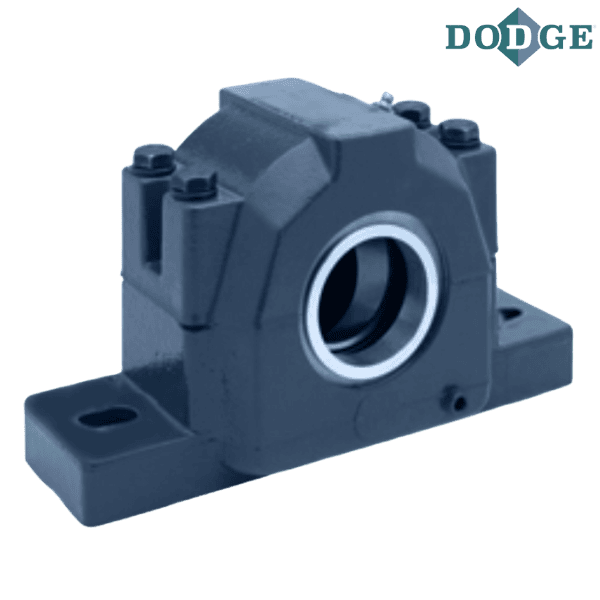

** Images are for representation purposes only
