043963 DODGE - P2B20-SS-307

Brand - DODGE
Item Number - 043963 DODGE - P2B20-SS-307
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 3.4375
Description - P2B20-SS-307
Housing W/ Stab Ring Item Number - 044020 DODGE - H2S-520-USAF
Bearing Item Number - 043404 DODGE - BRG20SS307
Dynamic Capacity (C) lbs - 64000
Maximum RPM (Grease) - 1700
Split LER Seal Item Number - 043509 DODGE - 46SS307
Housing - 520

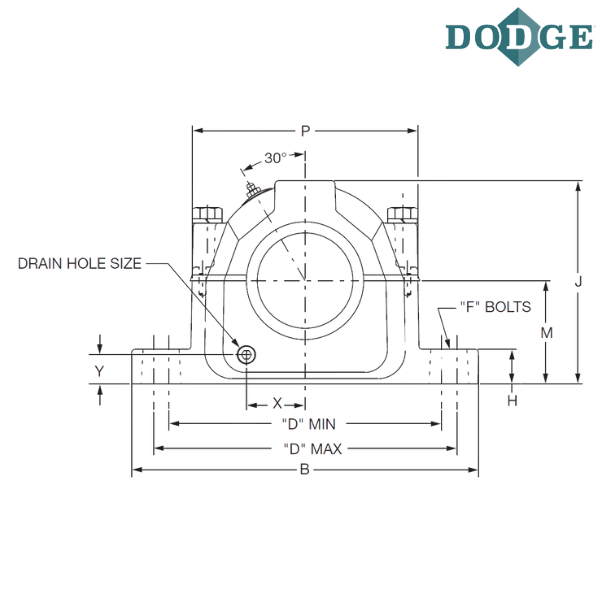

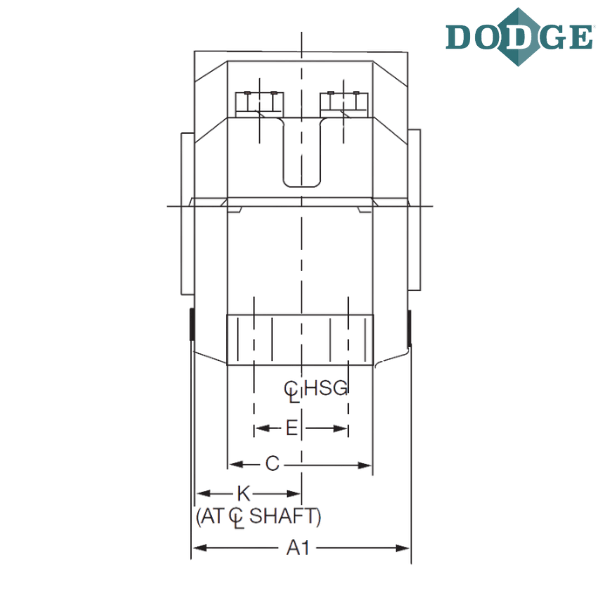

A1 (inch) - 6.78
Overall Length (B) inch - 15.36
C (inch) - 4.34
Bolt to Bolt Minimum Distance (D min) inch - 11.63
Bolt to Bolt Maximum Distance (D max) inch - 13.13
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.875
H (inch) - 1.66
Overall Height (J) inch - 8.75
K (inch) - 3.16
Base to Center Height (M) inch - 4.5
P (inch) - 9.78

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
307 - 3-7/16”

** Images are for representation purposes only
