043969 DODGE - P4B22-SS-315

Brand - DODGE
Item Number - 043969 DODGE - P4B22-SS-315
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 3.9375
Description - P4B22-SS-315
Housing W/ Stab Ring Item Number - 044025 DODGE - H4S-522-USAF
Bearing Item Number - 043405 DODGE - BRG22SS315
Dynamic Capacity (C) lbs - 80000
Maximum RPM (Grease) - 1450
Split LER Seal Item Number - 043511 DODGE - 50SS315
Housing - 522

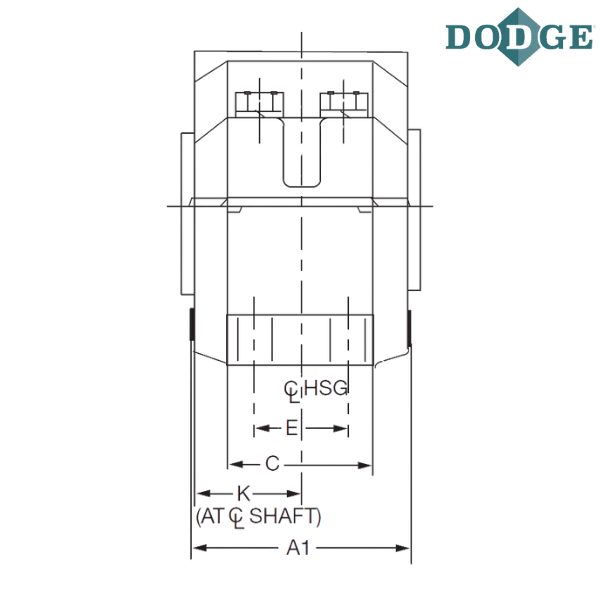

A1 (inch) - 7.08

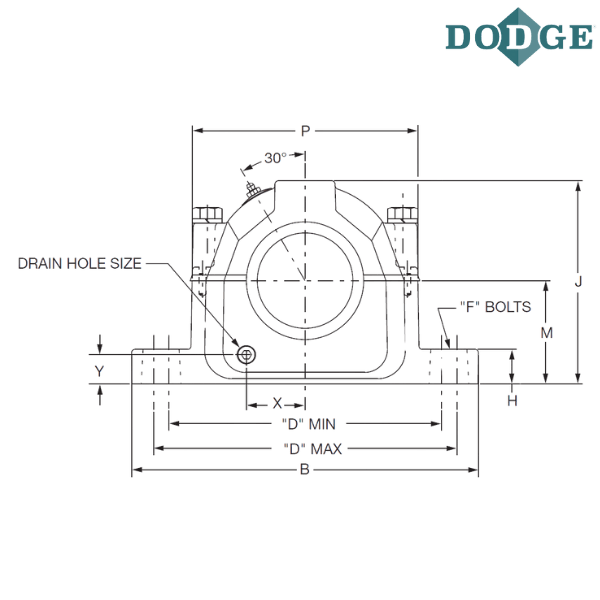

Overall Length (B) inch - 16.5
C (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 12.59
Bolt to Bolt Maximum Distance (D max) inch - 14.5
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.78
Overall Height (J) inch - 9.41
K (inch) - 3.3
Base to Center Height (M) inch - 4.94
P (inch) - 10.59

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
315 - 3-15/16”

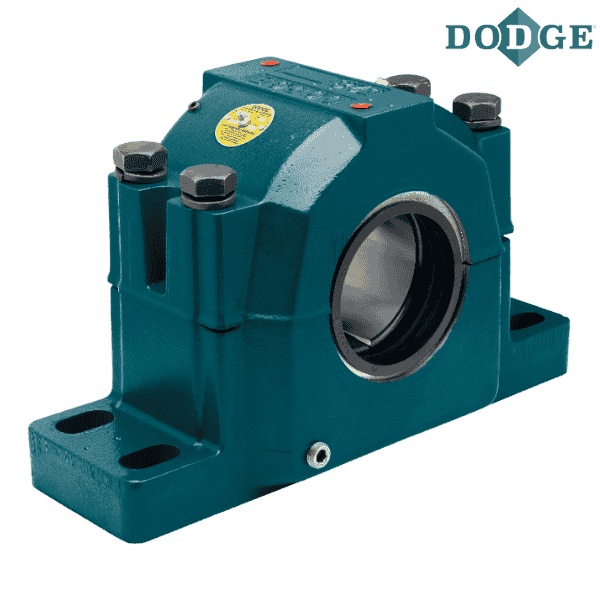

** Images are for representation purposes only
