043974 DODGE - P4B28-SS-415

Brand - DODGE
Item Number - 043974 DODGE - P4B28-SS-415
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 4.9375
Description - P4B28-SS-415
Housing W/ Stab Ring Item Number - 044034 DODGE - H4S-528-USAF
Bearing Item Number - 043408 DODGE - BRG28SS415
Dynamic Capacity (C) lbs - 143000
Maximum RPM (Grease) - 1100
Split LER Seal Item Number - 043516 DODGE - 56SS415
Housing - 528

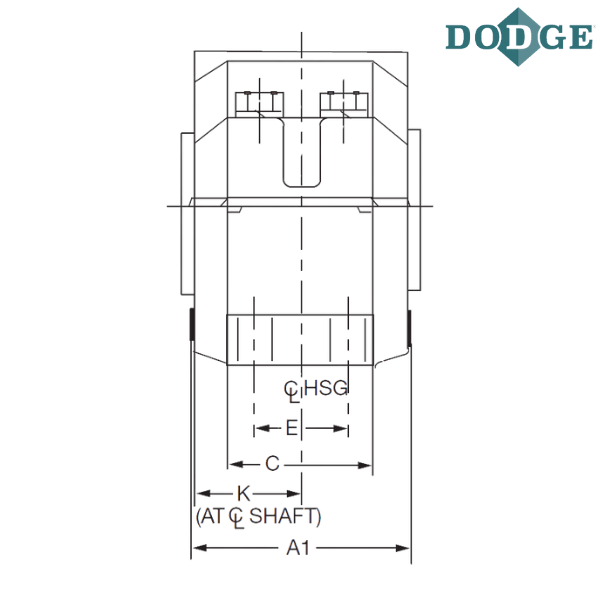

A1 (inch) - 8.77
Overall Length (B) inch - 19.69
C (inch) - 5.88

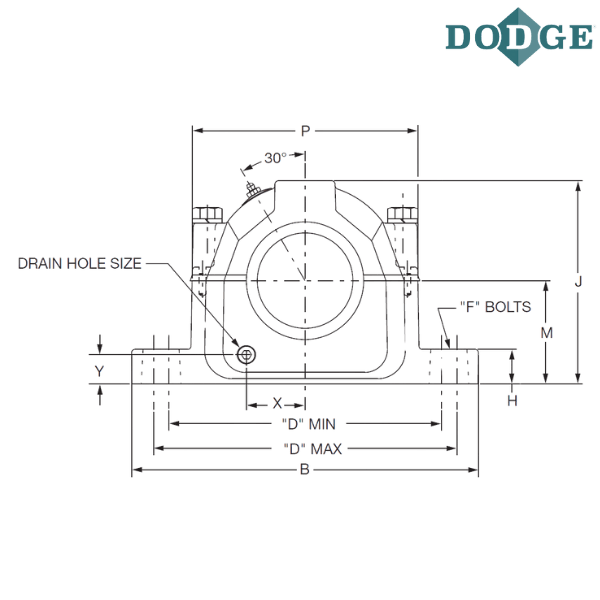

Bolt to Bolt Minimum Distance (D min) inch - 15.63
Bolt to Bolt Maximum Distance (D max) inch - 17.38
E (inch) - 3.38
F-Bolt Diameter (inch) - 1
H (inch) - 2.06
Overall Height (J) inch - 11.81
K (inch) - 4
Base to Center Height (M) inch - 6
P (inch) - 13.25

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
415 - 4-15/16”

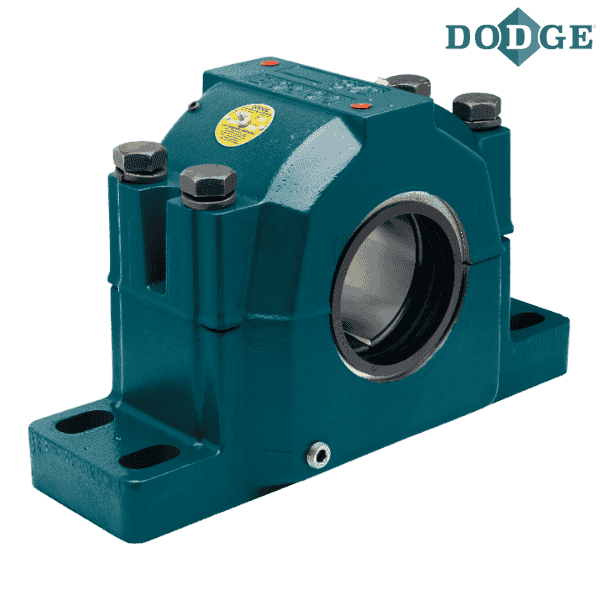

** Images are for representation purposes only
