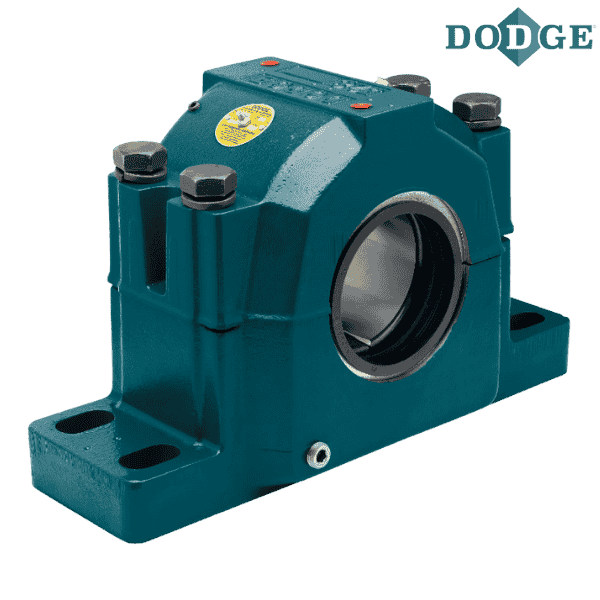

043978 DODGE - P4B34-SS-600

Brand - DODGE
Item Number - 043978 DODGE - P4B34-SS-600
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 6
Description - P4B34-SS-600
Housing W/ Stab Ring Item Number - 044043 DODGE - H4S-534-USAF
Bearing Item Number - 043412 DODGE - BRG34SS600
Dynamic Capacity (C) lbs - 216000
Maximum RPM (Grease) - 900
Split LER Seal Item Number - 043521 DODGE - 64SS600
Housing - 534

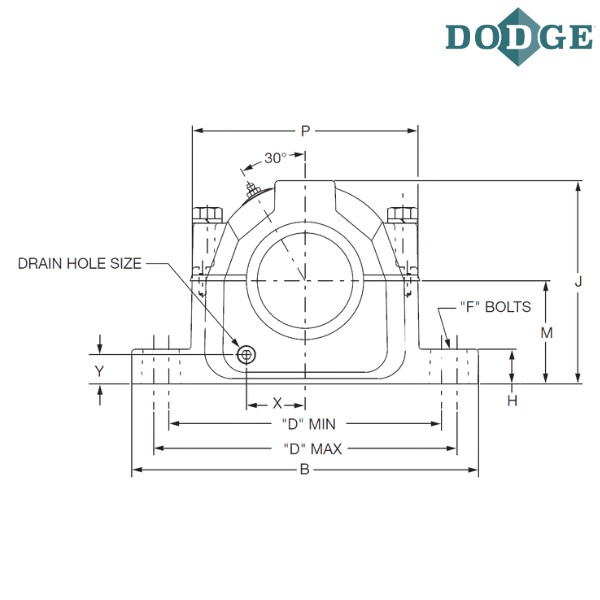

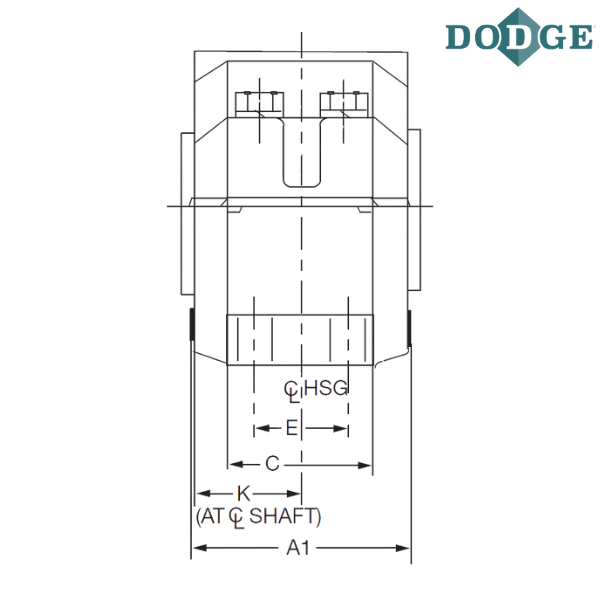

A1 (inch) - 9.72
Overall Length (B) inch - 24.75
C (inch) - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 19.38
Bolt to Bolt Maximum Distance (D max) inch - 21.63
E (inch) - 4.25
F-Bolt Diameter (inch) - 1
H (inch) - 2.88
Overall Height (J) inch - 14.56
K (inch) - 4.63
Base to Center Height (M) inch - 7.06
P (inch) - 16.81

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
600 - 6”

** Images are for representation purposes only
