043996 DODGE - H2S-510-USAF

Brand - DODGE
Item Number - 043996 DODGE - H2S-510-USAF
Category - USAF 500 Adapter Mount Pillow Block Housing (2-Bolt Through Housing)
Shaft Size (S-1) inch - 1.6875
Housing - 510
Description - H2S-510-USAF
Approximate Weight (lbs) - 11.3

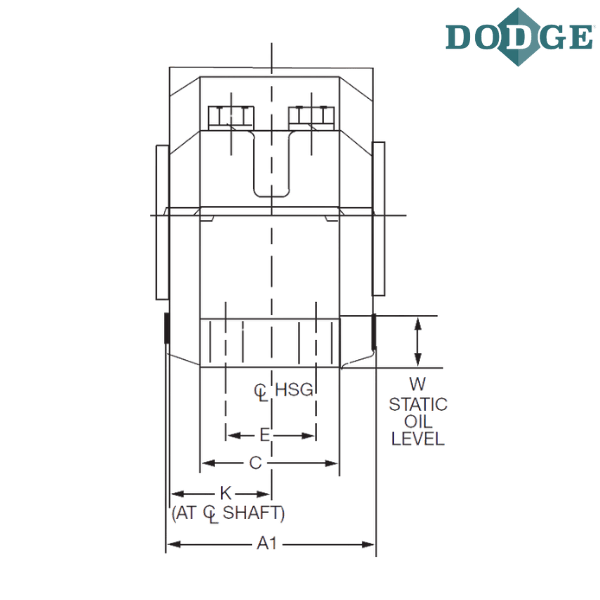

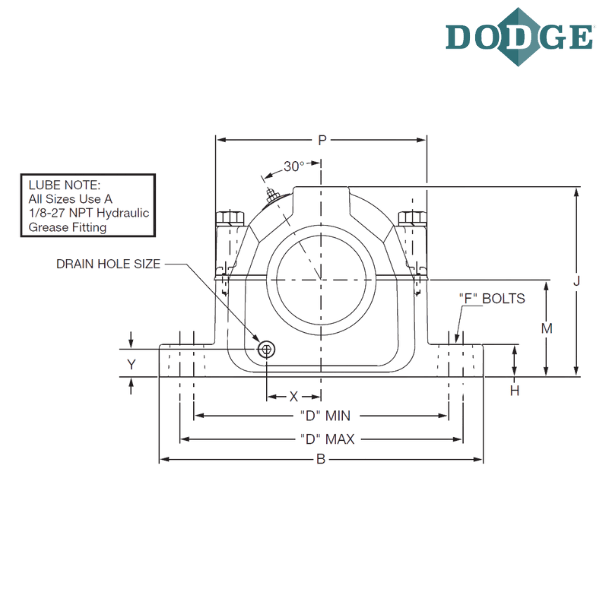

A1 (inch) - 4.06
Overall Length (B) inch - 8.25
C (inch) - 2.34
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
H (inch) - 1.03
Overall Height (J) inch - 4.59
K (inch) - 1.88
Base to Center Height (M) inch - 2.5
P (inch) - 5.13
Q (inch) - 1.11
S (inch) - 0.13
Static Oil Level (W) inch - 1.08
X (inch) - 1.25
Y (inch) - 0.81
Drain Hole Size - 1/8-27NPSI

Notes :
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

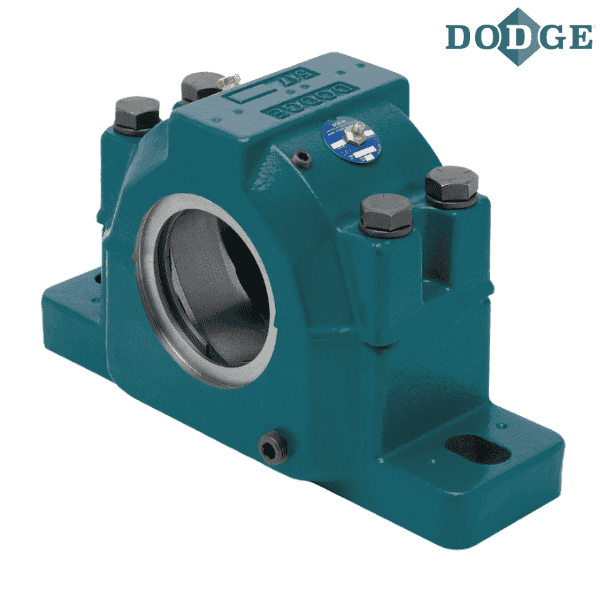

** Images are for representation purposes only
