Description
Brand - DODGE
Item Number - 046352 DODGE - H311-SNW-115
Category - USAF 500 Adaptor Assembly (SNW)

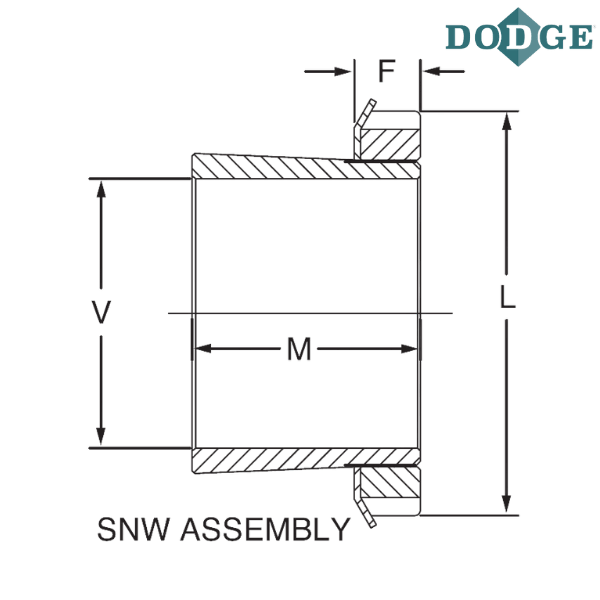

Shaft Diameter (V) inch - 1.9375
Housing - 511
SNW/SNP Number - H311-SNW-115
Approximate Weight (lbs) - 0.8
Outer Diameter (L) inch - 2.97
Maximum F (inch) - 0.58
Width (M) inch - 1.85
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
11 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
115 - Adapter Bore Size
** Images are for representation purposes only
