Description
Brand - DODGE

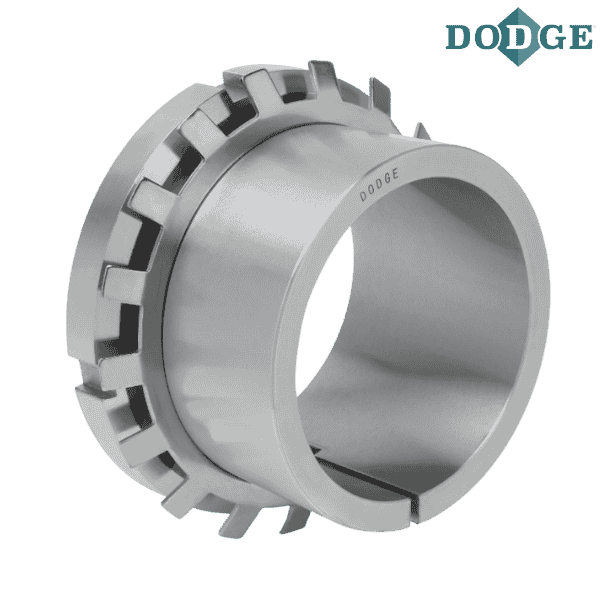

Item Number - 046355 DODGE - H315-SMW-208
Category - USAF 500 Adaptor Assembly (SNW)

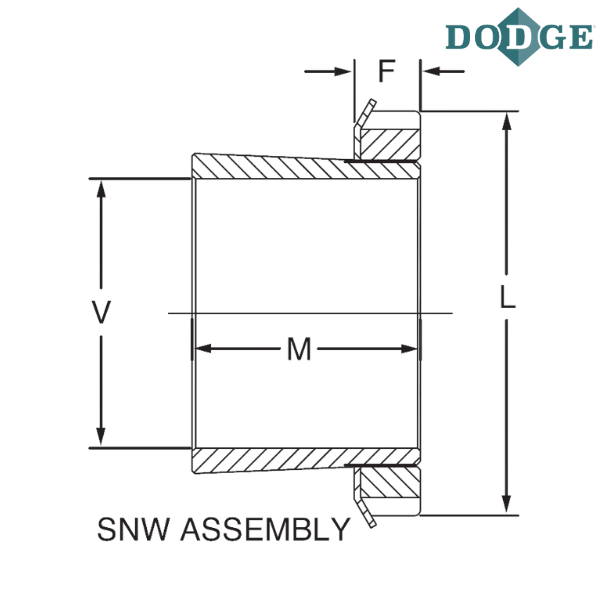

Shaft Diameter (V) inch - 2.5
Housing - 515
SNW/SNP Number - H315-SMW-208
Approximate Weight (lbs) - 2.3
Outer Diameter (L) inch - 3.88
Maximum F (inch) - 0.69
Width (M) inch - 2.29
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
15 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
208 - Adapter Bore Size
** Images are for representation purposes only
