Description
Brand - DODGE
Item Number - 046357 DODGE - H316-SNW-212
Category - USAF 500 Adaptor Assembly (SNW)

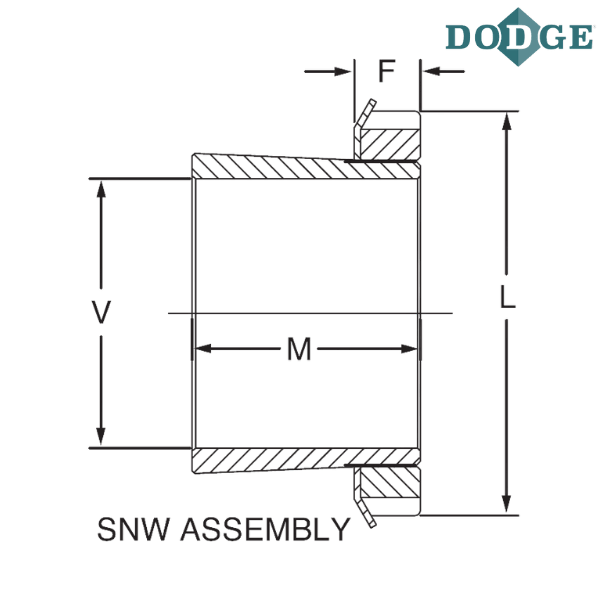

Shaft Diameter (V) inch - 2.75
Housing - 516
SNW/SNP Number - H316-SNW-212
Approximate Weight (lbs) - 2.6
Outer Diameter (L) inch - 4.16
Maximum F (inch) - 0.69
Width (M) inch - 2.37
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
16 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
212 - Adapter Bore Size

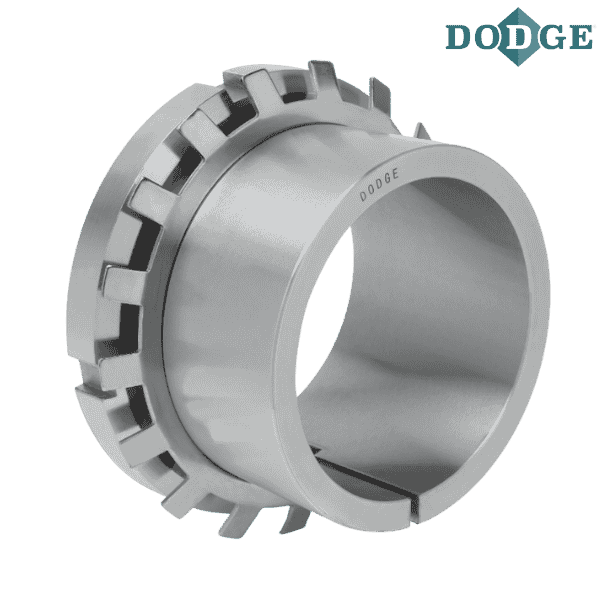

** Images are for representation purposes only
