Description
Brand - DODGE

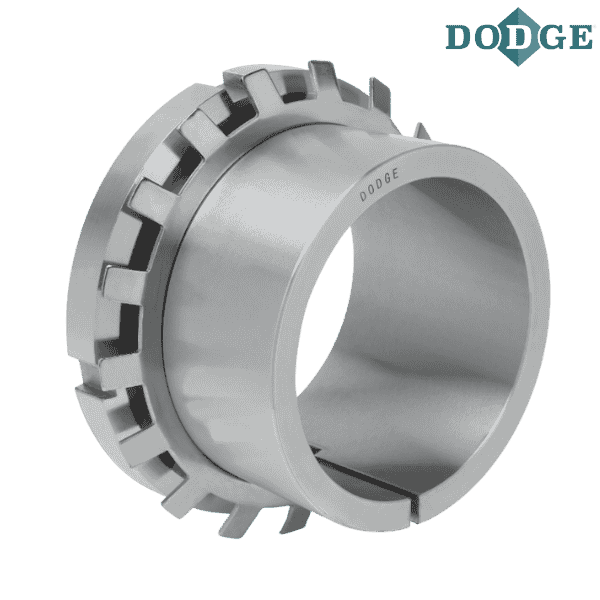

Item Number - 046361 DODGE - H320-SNW-307
Category - USAF 500 Adaptor Assembly (SNW)

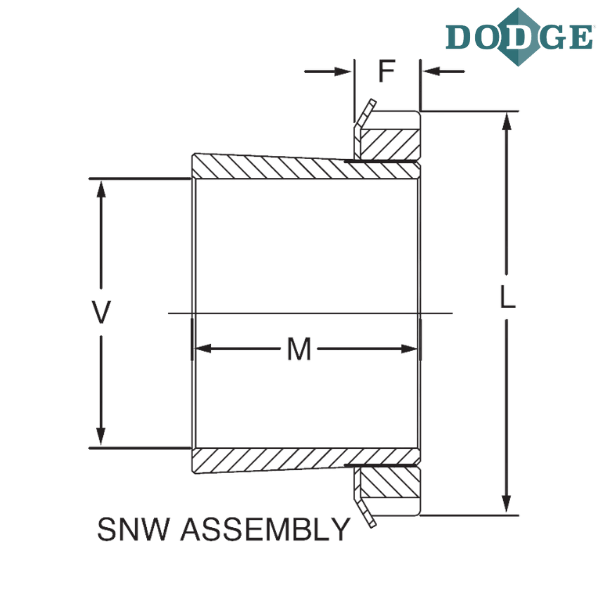

Shaft Diameter (V) inch - 3.4375
Housing - 520
SNW/SNP Number - H320-SNW-307
Approximate Weight (lbs) - 4.6
Outer Diameter (L) inch - 5.19
Maximum F (inch) - 0.83
Width (M) inch - 2.87
Notes :
H32 - Adapter Series for 23200K Series Bearings
20 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
307 - Adapter Bore Size
** Images are for representation purposes only
