046753 DODGE - NWKIT-USAF-10

Brand - DODGE
Item Number - 046753 DODGE - NWKIT-USAF-10
Category - USAF 300 Series Locknut and Washer Kit
Description - NWKIT-USAF-10
Housing - 310

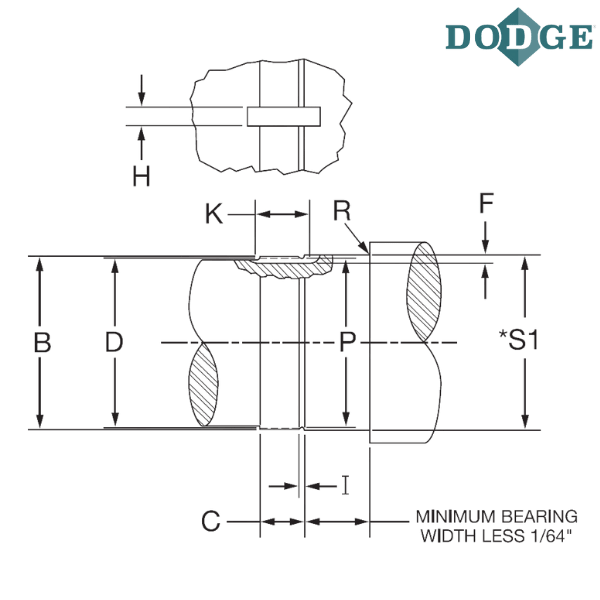

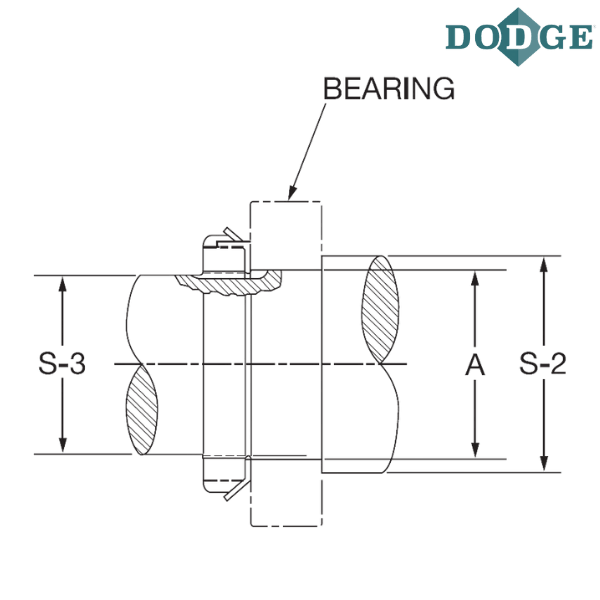

Bearing Bore Diameter (A) inch - 1.9685
Bearing Bore Diameter (A) mm - 50
Shaft Size (S-2) inch - 2.375
Shaft Size (S-3) inch - 1.875
Depth (F) inch - 0.09375 (+1/64 or -0)
Width (H) inch - 0.3125 (+1/64 or -0)
Full Depth Length (K) inch - 0.75
Maximum Radius (R) inch - 0.079
Threads Per Inch - 18
Maximum Thread Major Diameter (B) inch - 1.967
Minimum Thread Major Diameter (B) inch - 1.9588
Maximum Thread Pitch Diameter (D) inch - 1.9309
Minimum Thread Pitch Diameter (D) inch - 1.9264
Thread Length (C) inch - 0.59375 (+1/64 or -0)
Thread Relief (I) inch - 0.125 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 1.8832

Notes :
USAF - UNIFIED SAF Cast Iron Pillow Block Housing (Inch Dimensions)

* Tolerance ±.005 through 2.6672 diameter, ±.010 for larger sizes

** Images are for representation purposes only
