046755 DODGE - NWKIT-USAF-13

Brand - DODGE
Item Number - 046755 DODGE - NWKIT-USAF-13
Category - USAF 300 Series Locknut and Washer Kit
Description - NWKIT-USAF-13
Housing - 313

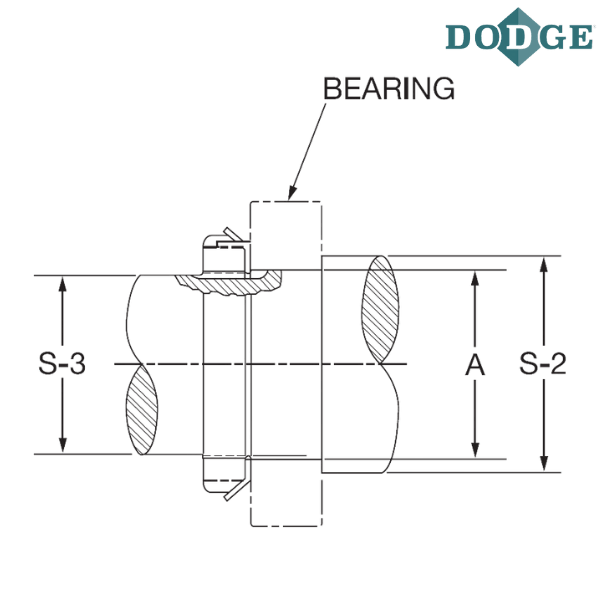

Bearing Bore Diameter (A) inch - 2.5591
Bearing Bore Diameter (A) mm - 65
Shaft Size (S-2) inch - 3.0625
Shaft Size (S-3) inch - 2.4375

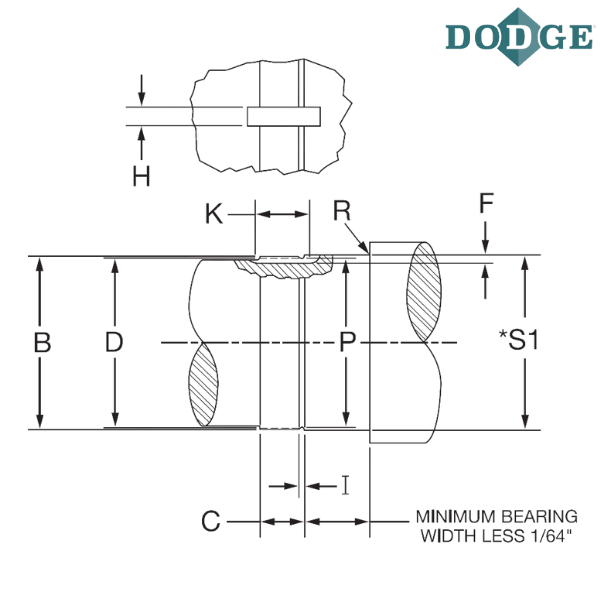

Depth (F) inch - 0.125 (+1/64 or -0)
Width (H) inch - 0.3125 (+1/64 or -0)
Full Depth Length (K) inch - 0.8125
Maximum Radius (R) inch - 0.079
Threads Per Inch - 18
Maximum Thread Major Diameter (B) inch - 2.548
Minimum Thread Major Diameter (B) inch - 2.5398
Maximum Thread Pitch Diameter (D) inch - 2.5119
Minimum Thread Pitch Diameter (D) inch - 2.5068
Thread Length (C) inch - 0.65625 (+1/64 or -0)
Thread Relief (I) inch - 0.125 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 2.4642

Notes :
USAF - UNIFIED SAF Cast Iron Pillow Block Housing (Inch Dimensions)

* Tolerance ±.005 through 2.6672 diameter, ±.010 for larger sizes

** Images are for representation purposes only
