046762 DODGE - NWKIT-USAF-24

Brand - DODGE
Item Number - 046762 DODGE - NWKIT-USAF-24
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-24
Housing - 224

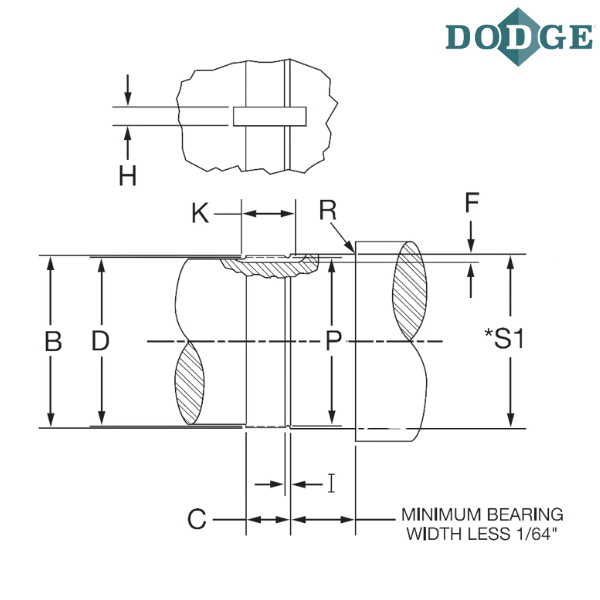

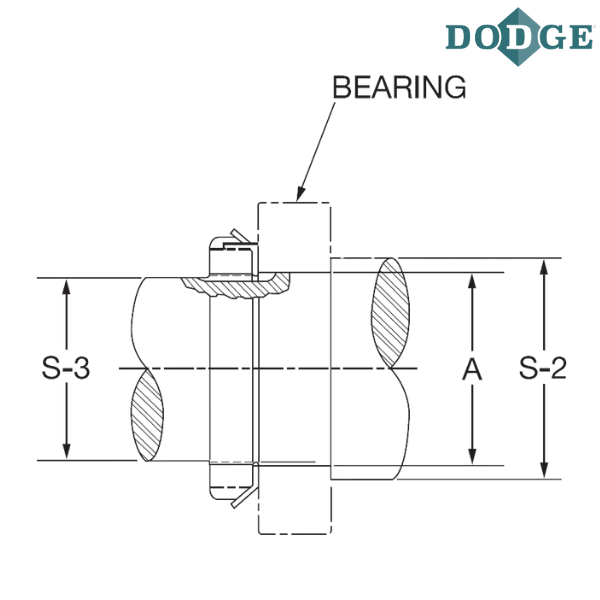

Bore Diameter (A) inch - 4.7244
Bore Diameter (A) mm - 120
Shaft Diameter (S-2) inch - 5.3125
Shaft Diameter (S-2) inch - 4.5625
Depth (F) inch - 0.1875 (+1/64 or -Ø)
Width (H) inch - 0.375 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.25
Maximum Radius (R) inch - 0.079
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 4.716
Minimum Thread Major Diameter (B) inch - 4.7048
Maximum Thread Pitch Diameter (D) inch - 4.6619
Minimum Thread Pitch Diameter (D) inch - 4.6536
Thread Length (C) inch - 0.9375 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 4.5825

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
