046763 DODGE - NWKIT-USAF-26

Brand - DODGE
Item Number - 046763 DODGE - NWKIT-USAF-26
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-26
Housing - 226

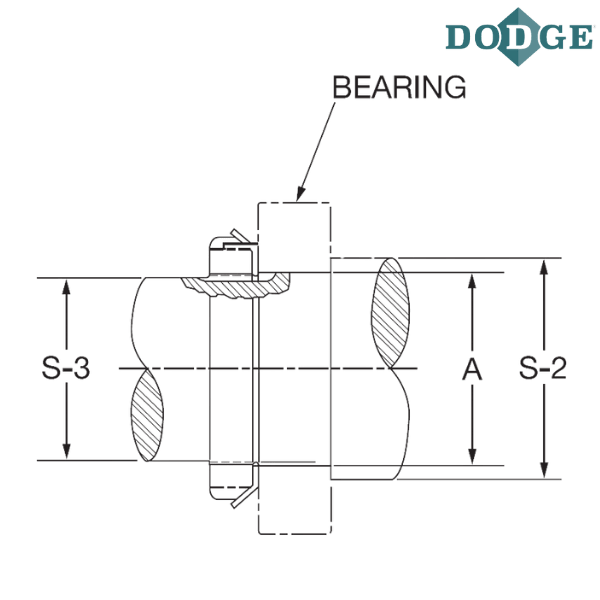

Bore Diameter (A) inch - 5.1181
Bore Diameter (A) mm - 130
Shaft Diameter (S-2) inch - 5.875
Shaft Diameter (S-2) inch - 4.9375

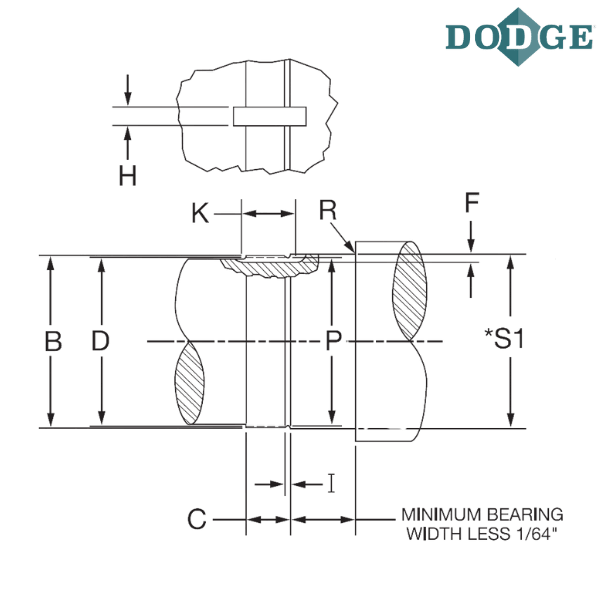

Depth (F) inch - 0.1875 (+1/64 or -Ø)
Width (H) inch - 0.5 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.3125
Maximum Radius (R) inch - 0.098
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 5.106
Minimum Thread Major Diameter (B) inch - 5.0948
Maximum Thread Pitch Diameter (D) inch - 5.0519
Minimum Thread Pitch Diameter (D) inch - 5.0436
Thread Length (C) inch - 1.0 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 4.9725

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
