046767 DODGE - NWKIT-USAF-34

Brand - DODGE
Item Number - 046767 DODGE - NWKIT-USAF-34
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-34
Housing - 234

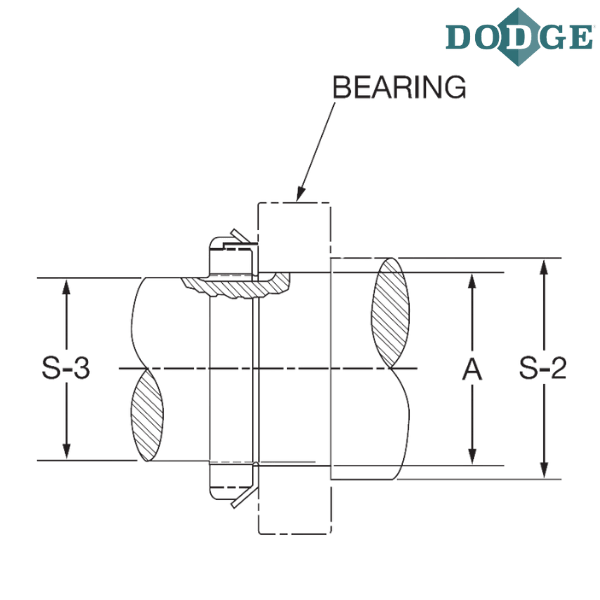

Bore Diameter (A) inch - 6.6929
Bore Diameter (A) mm - 170
Shaft Diameter (S-2) inch - 7.4375
Shaft Diameter (S-2) inch - 6.4375

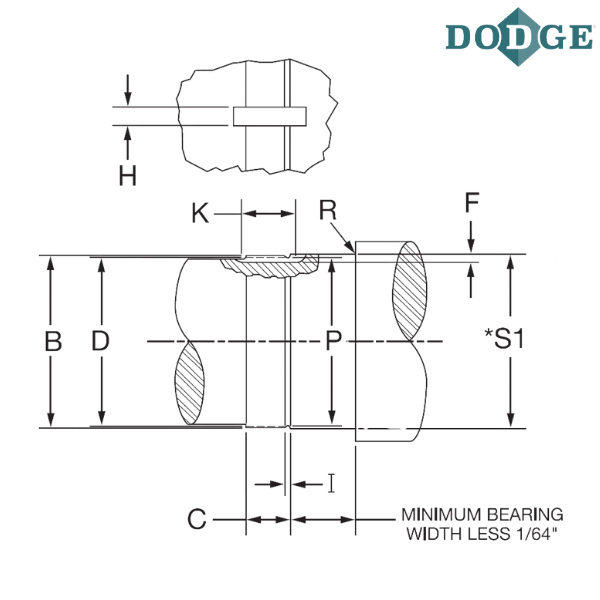

Depth (F) inch - 0.234375 (+1/64 or -Ø)
Width (H) inch - 0.75 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.59375
Maximum Radius (R) inch - 0.118
Threads Per Inch - 8
Maximum Thread Major Diameter (B) inch - 6.659
Minimum Thread Major Diameter (B) inch - 6.6438
Maximum Thread Pitch Diameter (D) inch - 6.5778
Minimum Thread Pitch Diameter (D) inch - 6.5687
Thread Length (C) inch - 1.21875 (+1/64 or -0)
Thread Relief (I) inch - 0.25 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 6.4743

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
