046770 DODGE - NWKIT-USAF-40

Brand - DODGE
Item Number - 046770 DODGE - NWKIT-USAF-40
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-40
Housing - 240

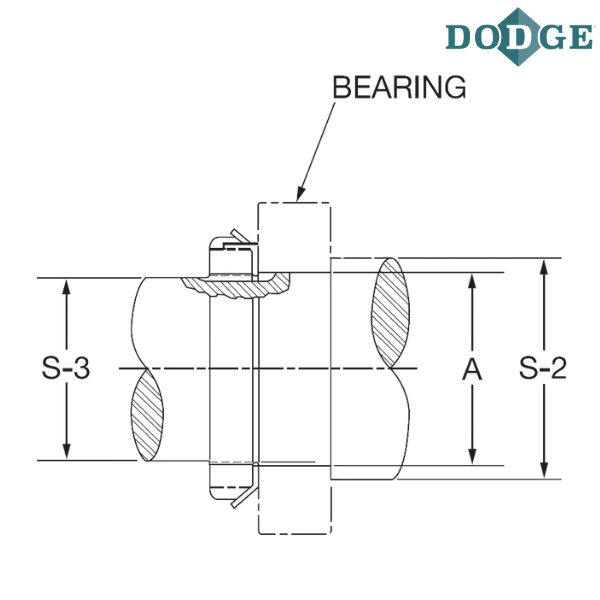

Bore Diameter (A) inch - 7.874
Bore Diameter (A) mm - 200
Shaft Diameter (S-2) inch - 8.75
Shaft Diameter (S-2) inch - 7.625

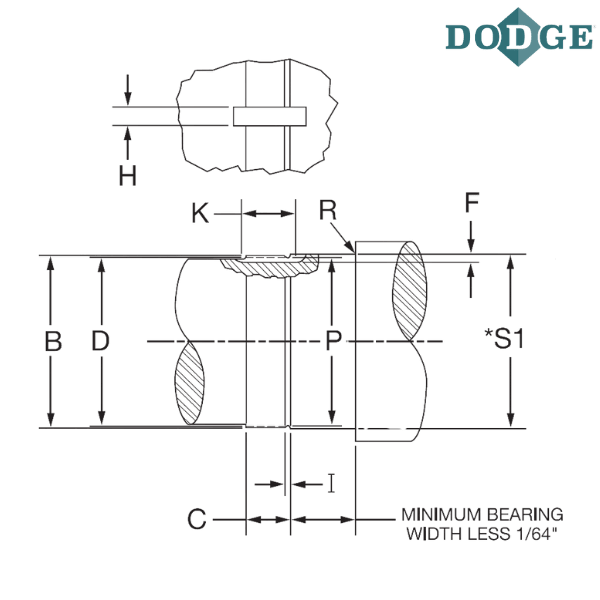

Depth (F) inch - 0.234375 (+1/64 or -Ø)
Width (H) inch - 0.875 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.71875
Maximum Radius (R) inch - 0.118
Threads Per Inch - 8
Maximum Thread Major Diameter (B) inch - 7.847
Minimum Thread Major Diameter (B) inch - 7.8318
Maximum Thread Pitch Diameter (D) inch - 7.7658
Minimum Thread Pitch Diameter (D) inch - 7.7544
Thread Length (C) inch - 1.34375 (+1/64 or -0)
Thread Relief (I) inch - 0.25 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 7.6623

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
