046771 DODGE - NWKIT-USAF-44

Brand - DODGE
Item Number - 046771 DODGE - NWKIT-USAF-44
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-44
Housing - 244

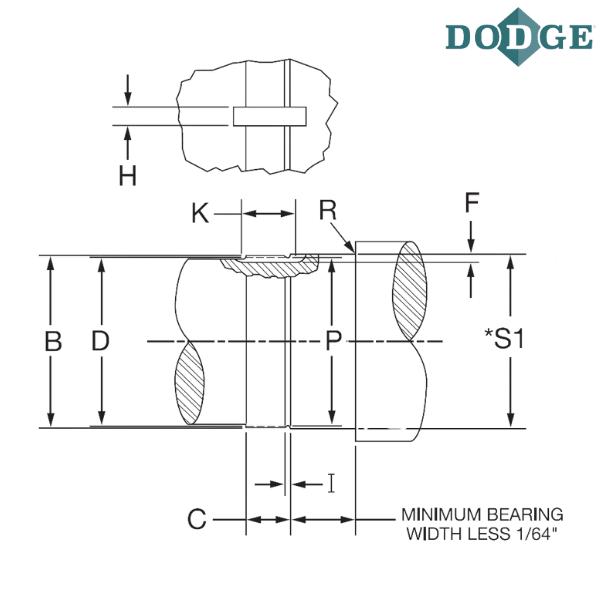

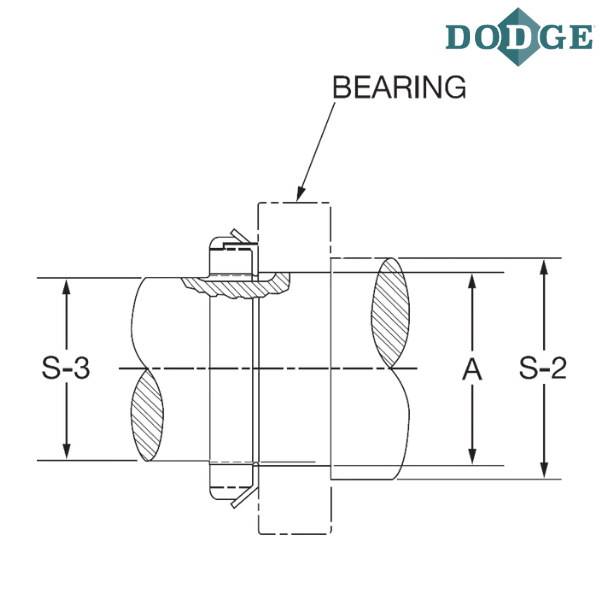

Bore Diameter (A) inch - 8.6614
Bore Diameter (A) mm - 220
Shaft Diameter (S-2) inch - 9.5625
Shaft Diameter (S-2) inch - 8.3125
Depth (F) inch - 0.375 (+1/64 or -Ø)
Width (H) inch - 1.0625 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.5625
Maximum Radius (R) inch - 0.118
Threads Per Inch - 8
Maximum Thread Major Diameter (B) inch - 8.628
Minimum Thread Major Diameter (B) inch - 8.6128
Maximum Thread Pitch Diameter (D) inch - 8.5468
Minimum Thread Pitch Diameter (D) inch - 8.5347
Thread Length (C) inch - 1.375 (+1/64 or -0)
Thread Relief (I) inch - 0.25 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 8.4433

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
