046773 DODGE - NWKIT-USAF-14

Brand - DODGE
Item Number - 046773 DODGE - NWKIT-USAF-14
Category - USAF 300 Series Locknut and Washer Kit
Description - NWKIT-USAF-14
Housing - 314

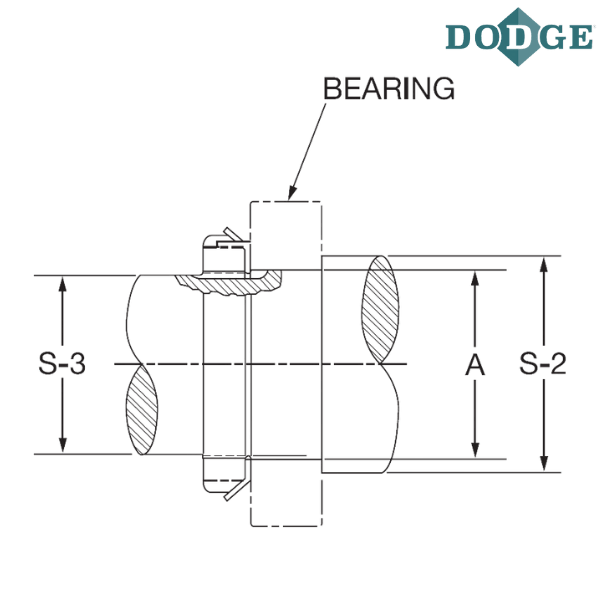

Bearing Bore Diameter (A) inch - 2.7559
Bearing Bore Diameter (A) mm - 70
Shaft Size (S-2) inch - 3.25
Shaft Size (S-3) inch - 2.625

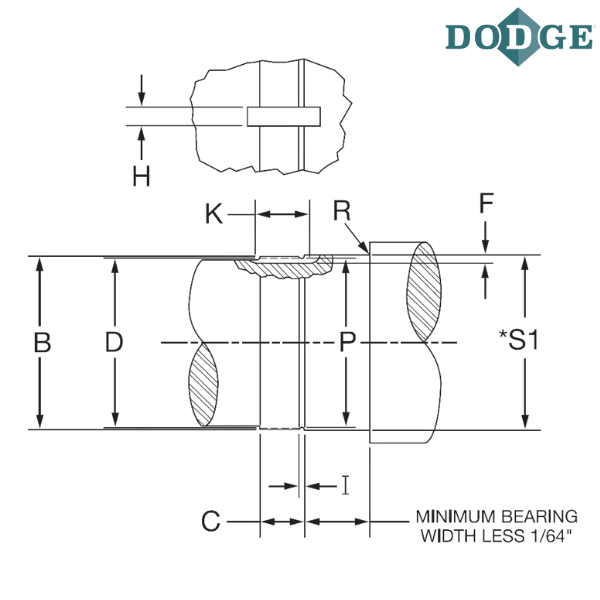

Depth (F) inch - 0.125 (+1/64 or -0)
Width (H) inch - 0.3125 (+1/64 or -0)
Full Depth Length (K) inch - 0.90625
Maximum Radius (R) inch - 0.079
Threads Per Inch - 18
Maximum Thread Major Diameter (B) inch - 2.751
Minimum Thread Major Diameter (B) inch - 2.7428
Maximum Thread Pitch Diameter (D) inch - 2.7149
Minimum Thread Pitch Diameter (D) inch - 2.7098
Thread Length (C) inch - 0.65625 (+1/64 or -0)
Thread Relief (I) inch - 0.125 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 2.6672

Notes :
USAF - UNIFIED SAF Cast Iron Pillow Block Housing (Inch Dimensions)

* Tolerance ±.005 through 2.6672 diameter, ±.010 for larger sizes

** Images are for representation purposes only
