Description
Brand - DODGE
Item Number - 047648 DODGE - H3256-SNP-1007
Category - USDAF SNP Adapter Assembly
Housing - 3256
Bearing Number - 23256K
SNP Number - H3256-SNP-1007
Approximate Weight (kg) - 59

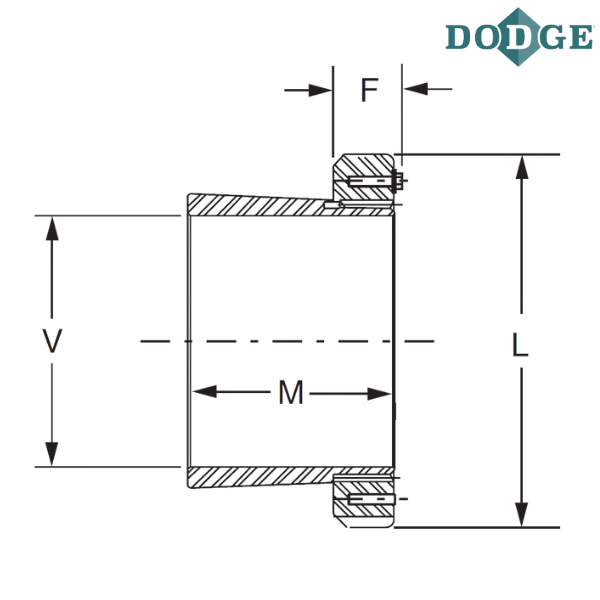

Shaft Size (V) inch - 10.4375
Outer Diameter (L) inch - 13.01
F (inch) - 1.85
M (inch) - 8.94
Notes :
H32 - Adapter Series for 23200K Series Bearings
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268

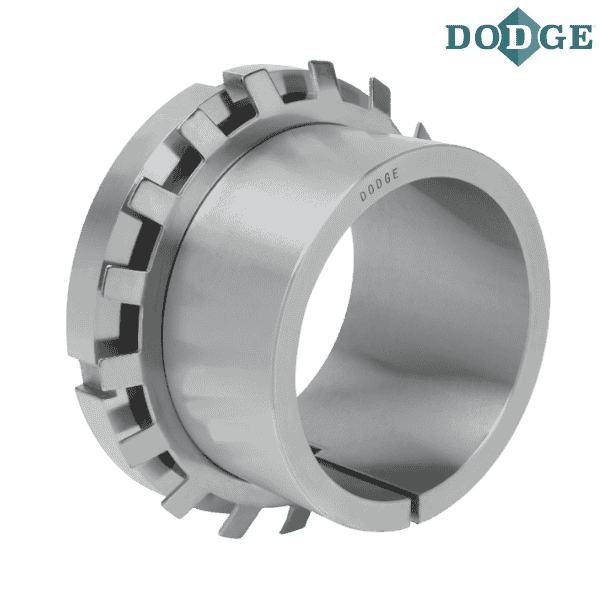

** Images are for representation purposes only
