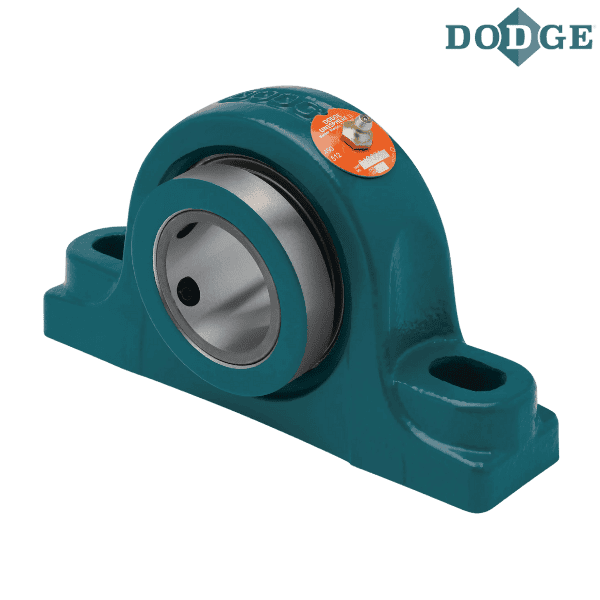

048000 DODGE - P2B-UN2-107

Brand - DODGE
Item Number - 048000 DODGE - P2B-UN2-107
Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22208
Shaft Size (inch) - 1.4375
Part Name - P2B-UN2-107
Part Number (Expansion) - 048017
Part Name (Expansion) - P2B-UN2-107E
Approximate Weight (lbs) - 5.5

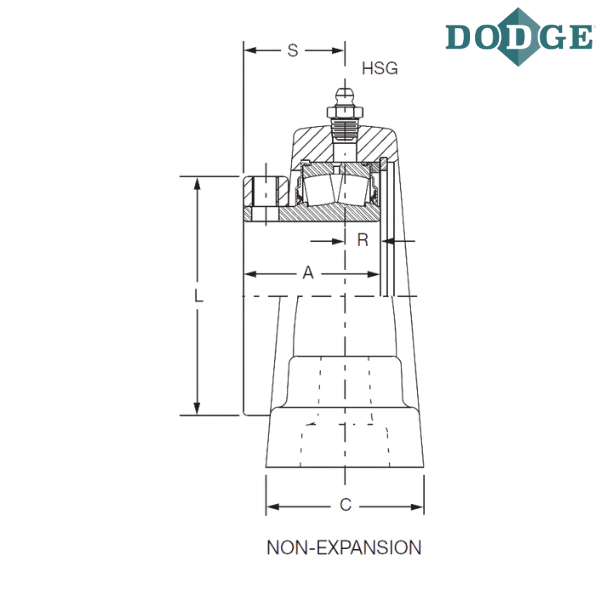

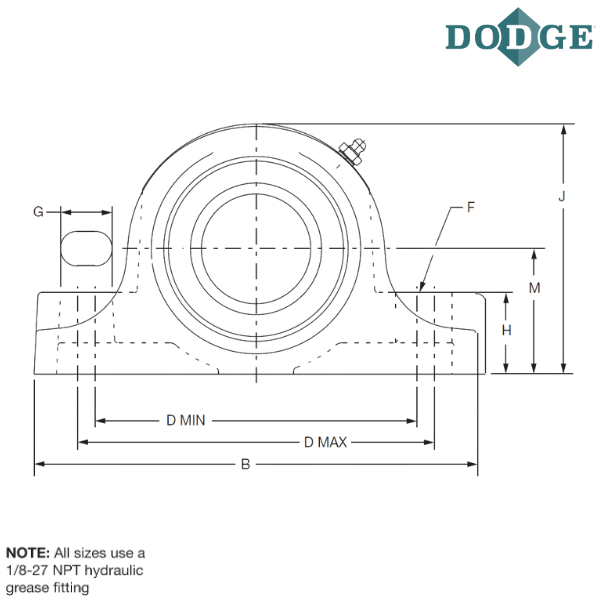

Length Through Bore (A) inch - 1.69
Overall Length (B) inch - 6.88
Width (C) inch - 1.95
Bolt to Bolt Minimum Distance (D min) inch - 4.69
Bolt to Bolt Maximum Distance (D max) inch - 5.5

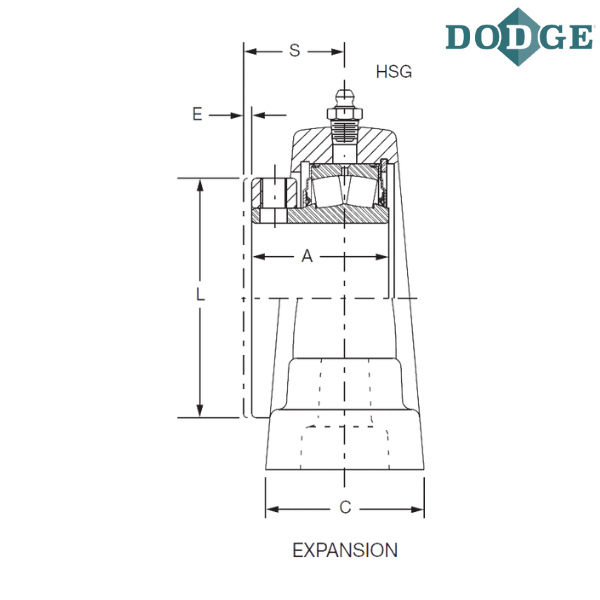

Total Expansion (E) inch - 0.15625
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.97
H (inch) - 0.97
Overall Height (J) inch - 3.88
L (inch) - 2.75
Base to Center Height (M) inch - 1.88
R (inch) - 0.5
S (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
