048041 DODGE - F4B-UN2-207

Brand - DODGE
Item Number - 048041 DODGE - F4B-UN2-207
Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22213
Shaft Size (inch) - 2.4375
Part Name - F4B-UN2-207
Part Number (Expansion) - 048058
Part Name (Expansion) - F4B-UN2-207E
Approximate Weight (lbs) - 10.5

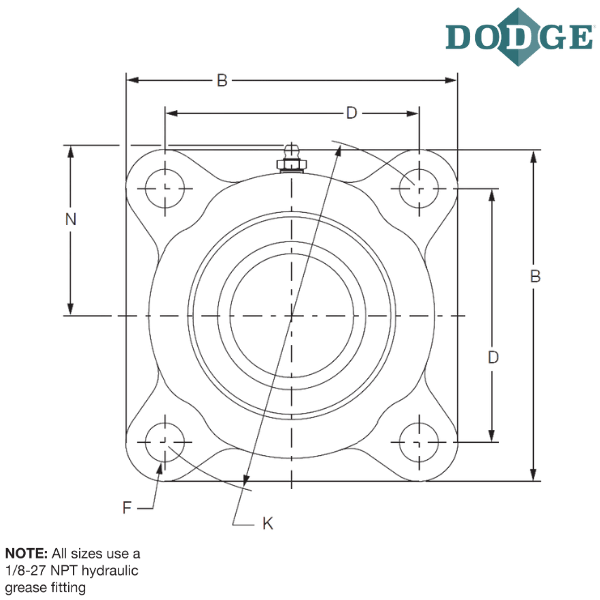

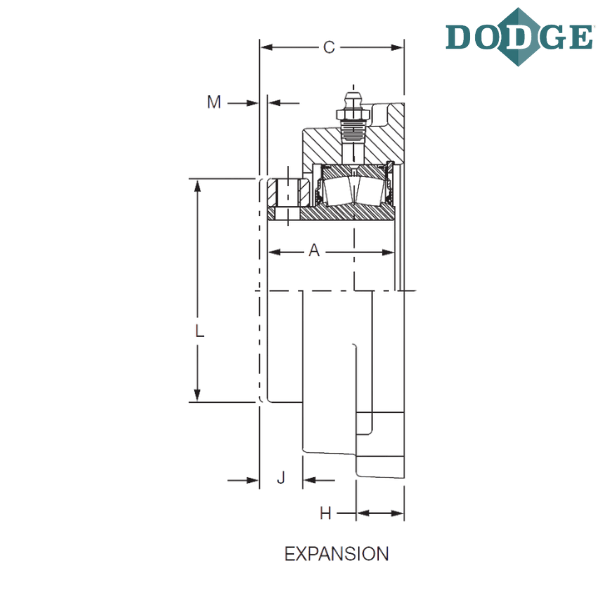

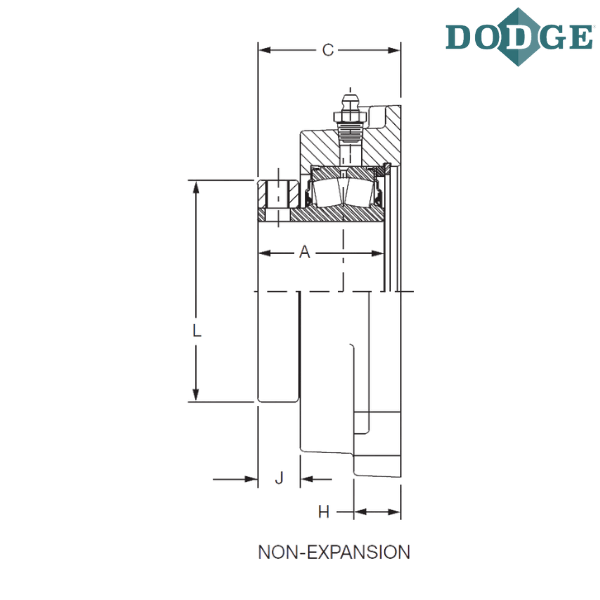

Length Through Bore (A) inch - 2.2
Overall Length (B) inch - 6.13
Thickness (C) inch - 2.44
Bolt Center to Center Length (D) inch - 4.78
F-Bolt Diameter (inch) - 0.625
H (inch) - 1
J (inch) - 0.63
K (inch) - 6.75
L (inch) - 4.06
Total Expansion (E) inch - 0.1875
N (inch) - 3.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

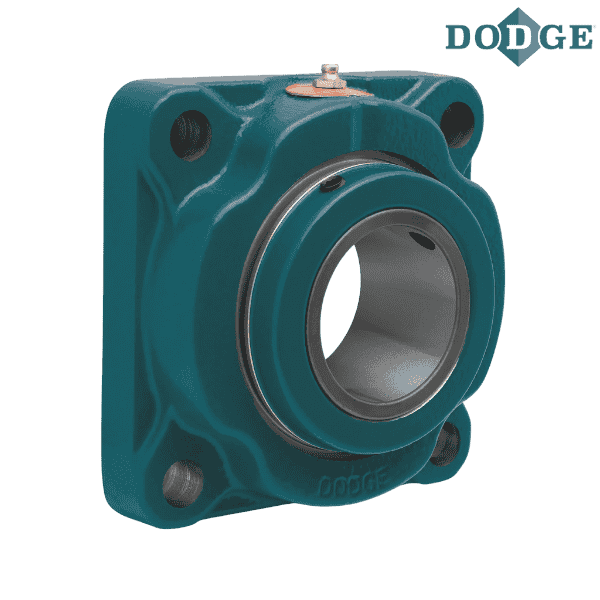

** Images are for representation purposes only
