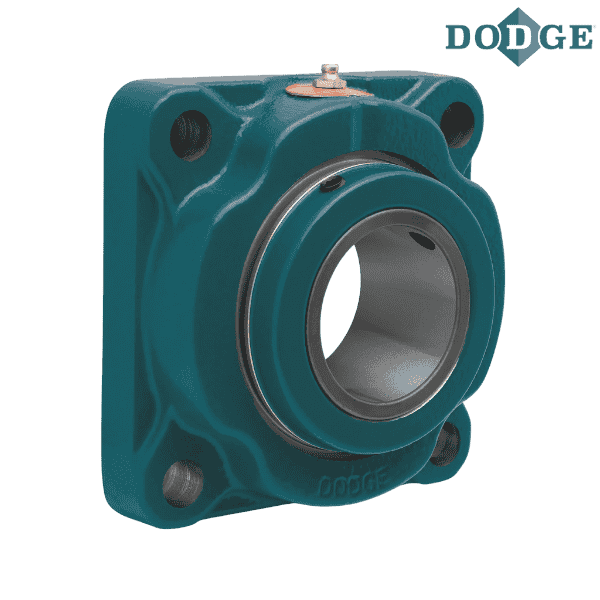

048047 DODGE - F4B-UN2-307

Brand - DODGE
Item Number - 048047 DODGE - F4B-UN2-307

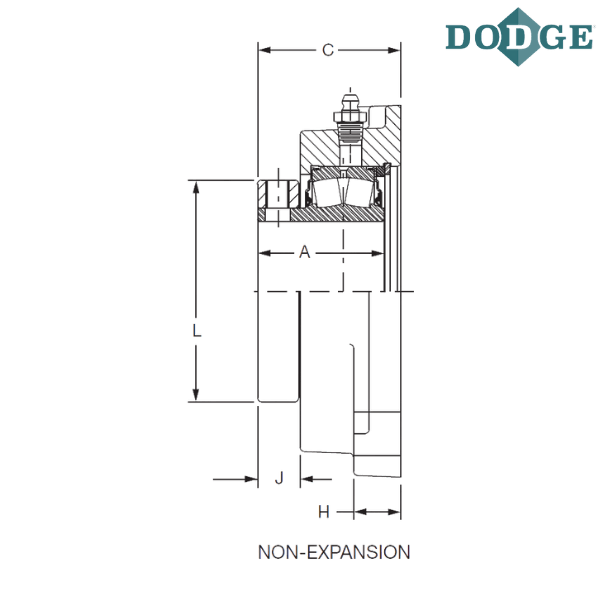

Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - F4B-UN2-307

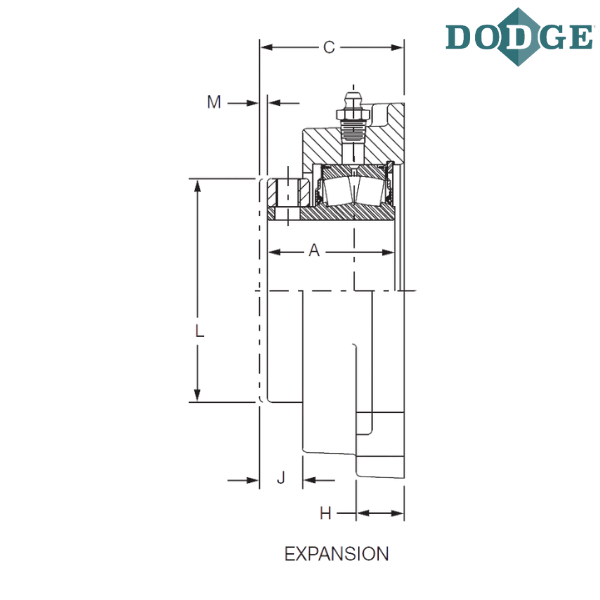

Part Number (Expansion) - 048064
Part Name (Expansion) - F4B-UN2-307E
Approximate Weight (lbs) - 24.7

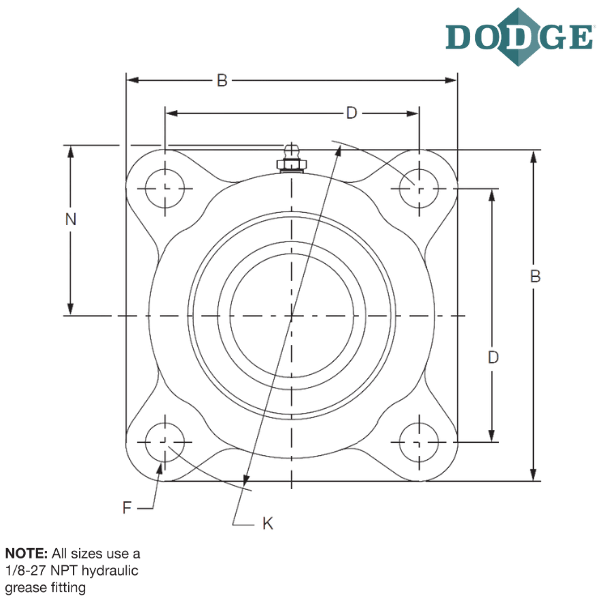

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 8.34
Thickness (C) inch - 3.08
Bolt Center to Center Length (D) inch - 6.72
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.19
J (inch) - 0.86
K (inch) - 9.5
L (inch) - 5.5
Total Expansion (E) inch - 0.1875
N (inch) - 4.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
