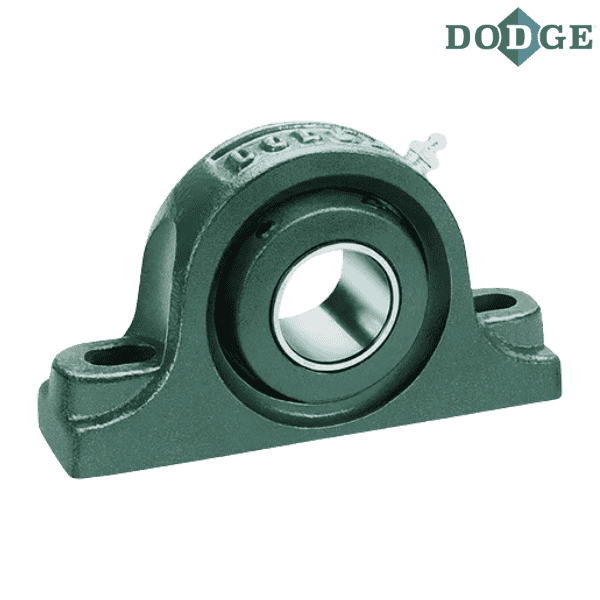

048110 DODGE - P2B-UN2-055M

Brand - DODGE
Item Number - 048110 DODGE - P2B-UN2-055M
Category - UNISPHERE II Plummer Block Bearing - Metric (Non-Expansion)
Bearing - 22211
Shaft Size (mm) - 55
Part Name - P2B-UN2-055M

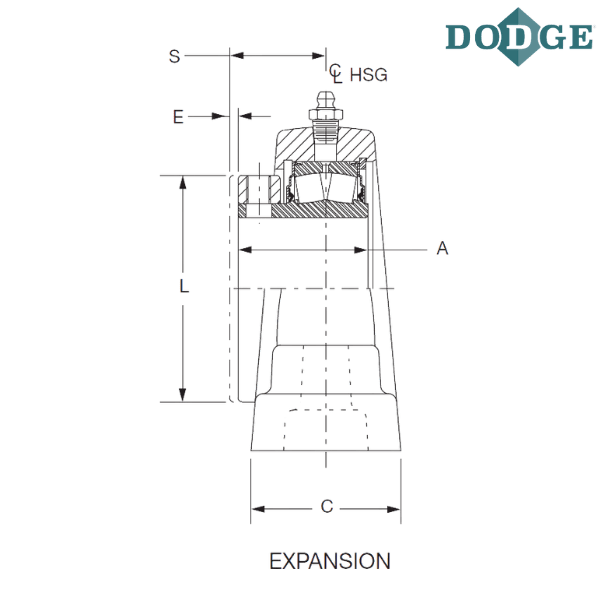

Part Number (Expansion) - 048125
Part Name (Expansion) - P2B-UN2-055ME
Approximate Weight (kg) - 4.4

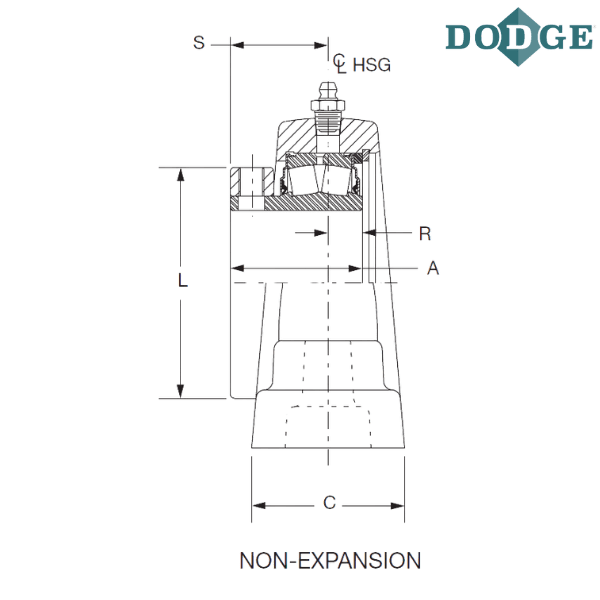

Length Through Bore (A) mm - 51

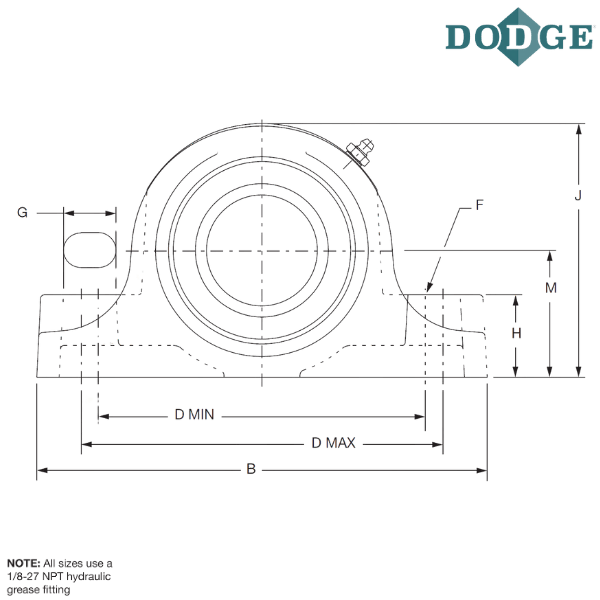

Overall Length (B) mm - 225
Width (C) mm - 59
Bolt to Bolt Minimum Distance (D min) mm - 164
Bolt to Bolt Maximum Distance (D max) mm - 181
Total Expansion (E) mm - 3.9
F-Bolt Diameter (mm) - 16
G (mm) - 26
H (mm) - 41
Overall Height (J) mm - 127
L (mm) - 89
Base to Center Height (M) mm - 63.5
R (mm) - 13
S (mm) - 38

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
