048111 DODGE - P2B-UN2-060M

Brand - DODGE
Item Number - 048111 DODGE - P2B-UN2-060M
Category - UNISPHERE II Plummer Block Bearing - Metric (Non-Expansion)
Bearing - 22213
Shaft Size (mm) - 60
Part Name - P2B-UN2-060M
Part Number (Expansion) - 048126
Part Name (Expansion) - P2B-UN2-060ME
Approximate Weight (kg) - 6.2

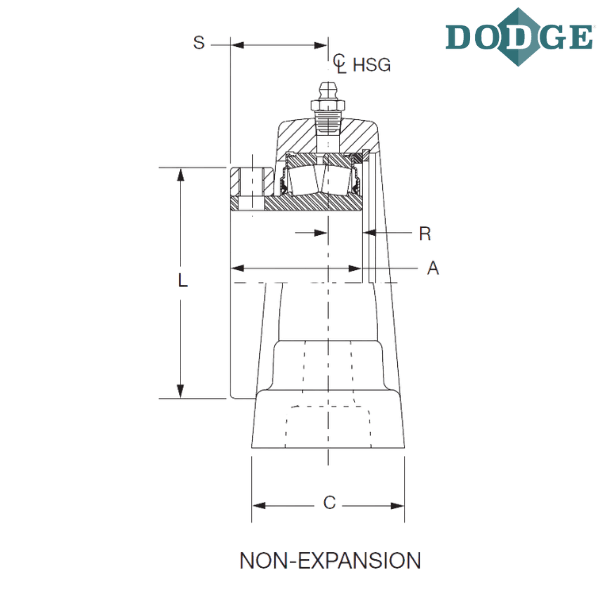

Length Through Bore (A) mm - 56

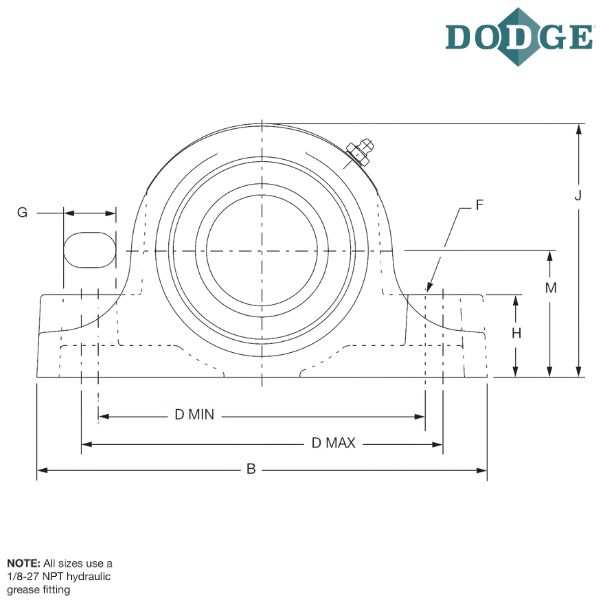

Overall Length (B) mm - 235
Width (C) mm - 65
Bolt to Bolt Minimum Distance (D min) mm - 173
Bolt to Bolt Maximum Distance (D max) mm - 189

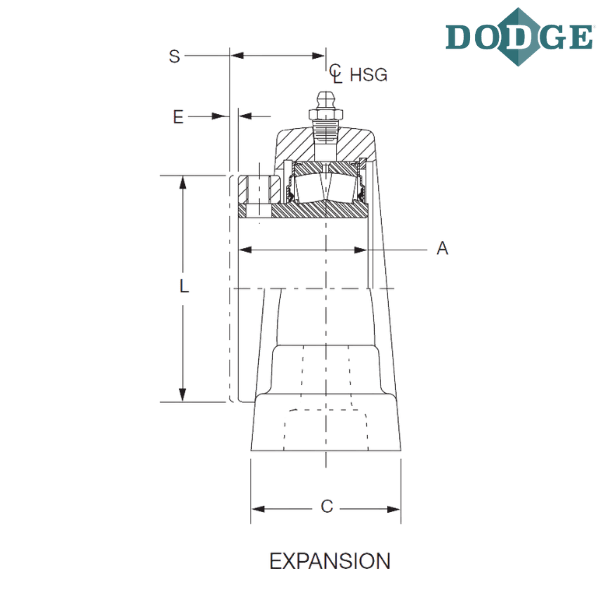

Total Expansion (E) mm - 4.7
F-Bolt Diameter (mm) - 16
G (mm) - 25
H (mm) - 44
Overall Height (J) mm - 144
L (mm) - 103
Base to Center Height (M) mm - 69.8
R (mm) - 17
S (mm) - 39

Notes :

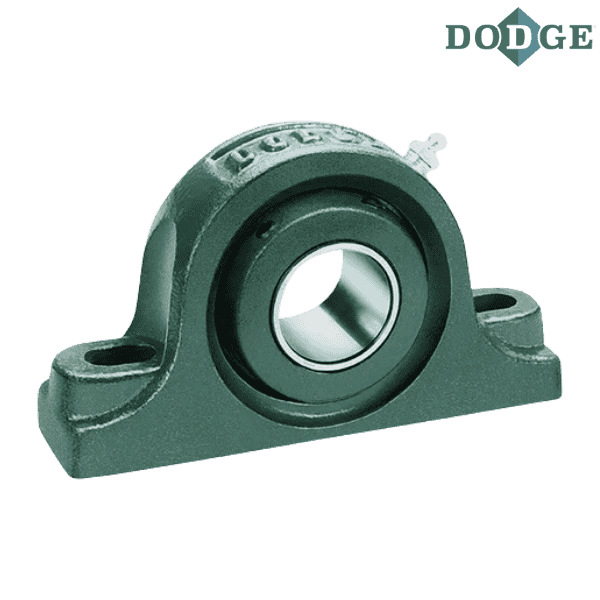

P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
