048113 DODGE - P2B-UN2-070M

Brand - DODGE
Item Number - 048113 DODGE - P2B-UN2-070M
Category - UNISPHERE II Plummer Block Bearing - Metric (Non-Expansion)
Bearing - 22215
Shaft Size (mm) - 70
Part Name - P2B-UN2-070M

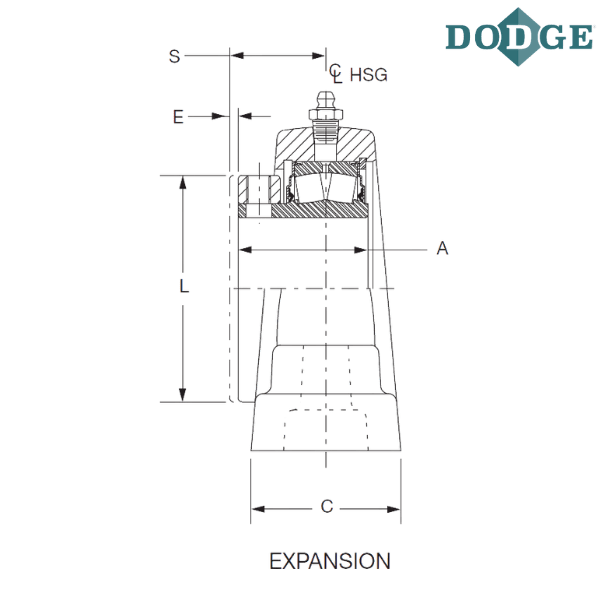

Part Number (Expansion) - 048128
Part Name (Expansion) - P2B-UN2-070ME
Approximate Weight (kg) - 8.6

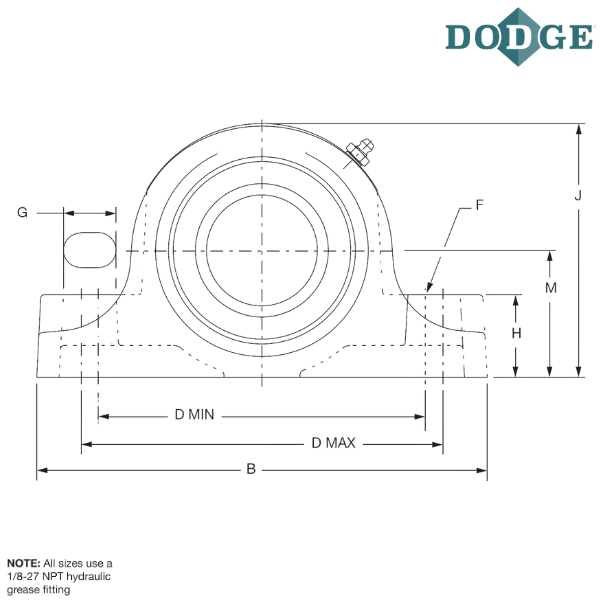

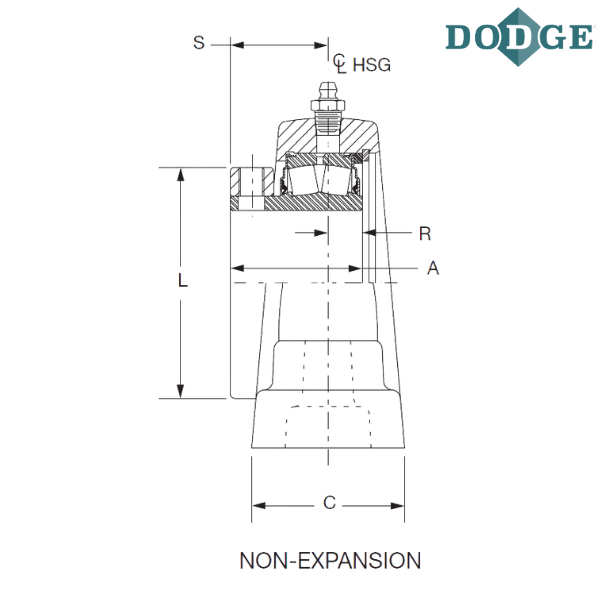

Length Through Bore (A) mm - 62
Overall Length (B) mm - 265
Width (C) mm - 65
Bolt to Bolt Minimum Distance (D min) mm - 198
Bolt to Bolt Maximum Distance (D max) mm - 214
Total Expansion (E) mm - 4.7
F-Bolt Diameter (mm) - 20
G (mm) - 29
H (mm) - 57
Overall Height (J) mm - 164
L (mm) - 120
Base to Center Height (M) mm - 82.5
R (mm) - 19
S (mm) - 43

Notes :

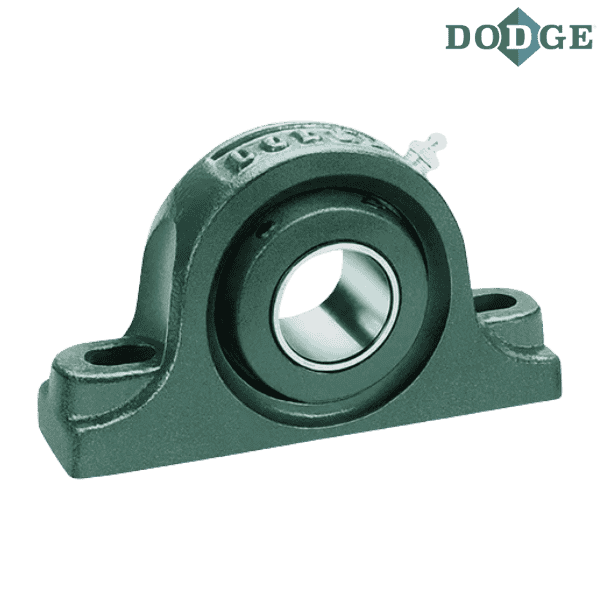

P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
