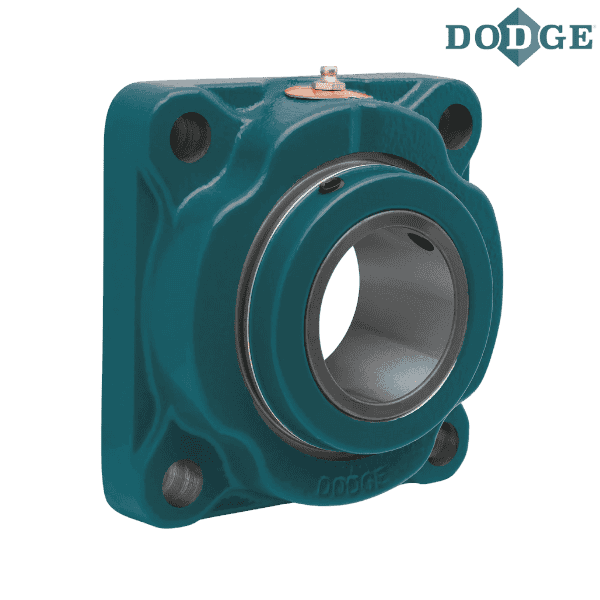

048203 DODGE - F4B-UN2-045M

Brand - DODGE
Item Number - 048203 DODGE - F4B-UN2-045M
Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22209
Shaft Size (mm) - 45
Part Name - F4B-UN2-045M
Part Number (Expansion) - 048217
Part Name (Expansion) - F4B-UN2-045ME
Approximate Weight (kg) - 3.1

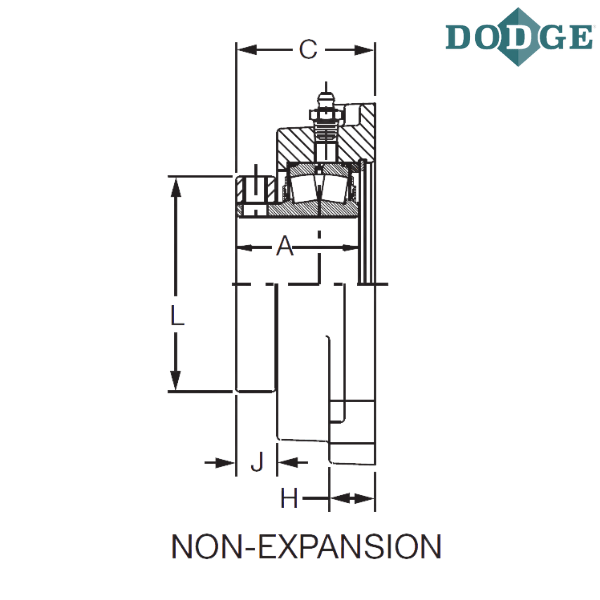

Length Through Bore (A) mm - 48

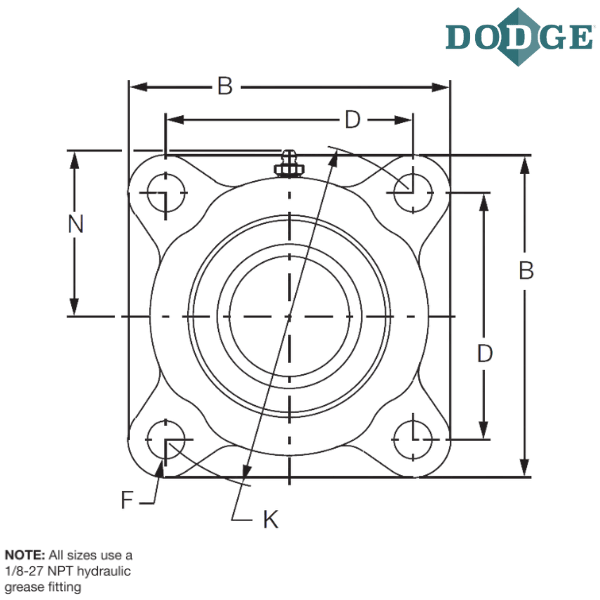

Overall Length (B) mm - 130
Thickness (C) mm - 55
D (mm) - 99
F-Bolt Diameter (mm) - 12
H (mm) - 19
J (mm) - 18
K (mm) - 140
L (mm) - 76

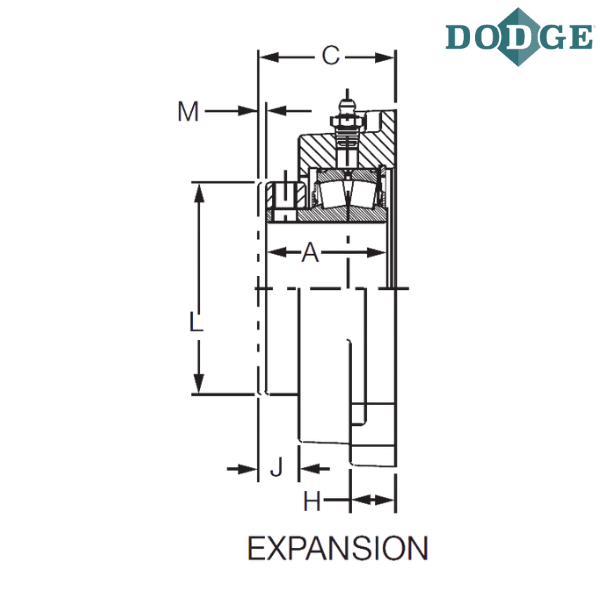

Total Expansion (M) mm - 3.9
N (mm) - 70

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
