048207 DODGE - F4B-UN2-065M

Brand - DODGE
Item Number - 048207 DODGE - F4B-UN2-065M

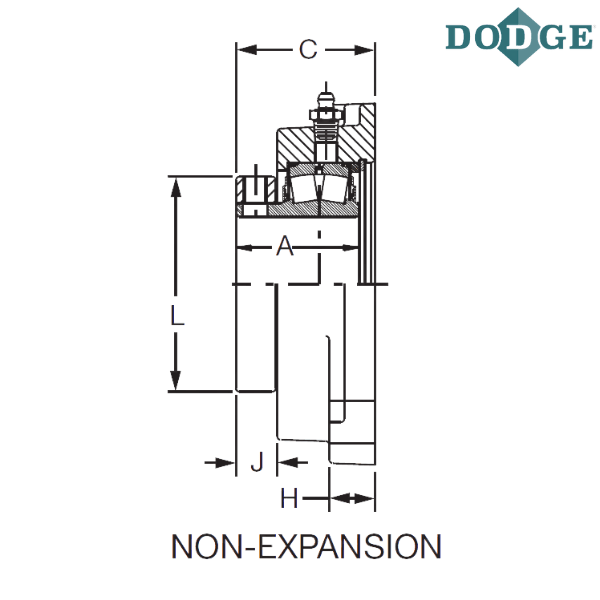

Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22213
Shaft Size (mm) - 65
Part Name - F4B-UN2-065M

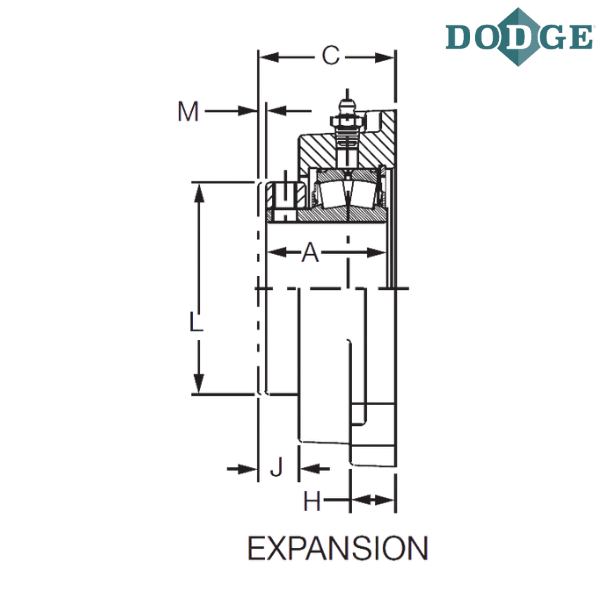

Part Number (Expansion) - 048221
Part Name (Expansion) - F4B-UN2-065ME
Approximate Weight (kg) - 4.6

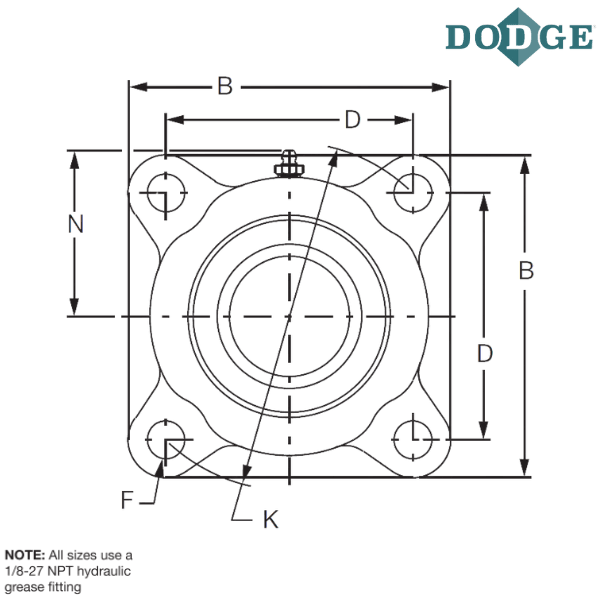

Length Through Bore (A) mm - 56
Overall Length (B) mm - 156
Thickness (C) mm - 62
D (mm) - 121
F-Bolt Diameter (mm) - 16
H (mm) - 25
J (mm) - 16
K (mm) - 171
L (mm) - 103
Total Expansion (M) mm - 3.9
N (mm) - 86

Notes :

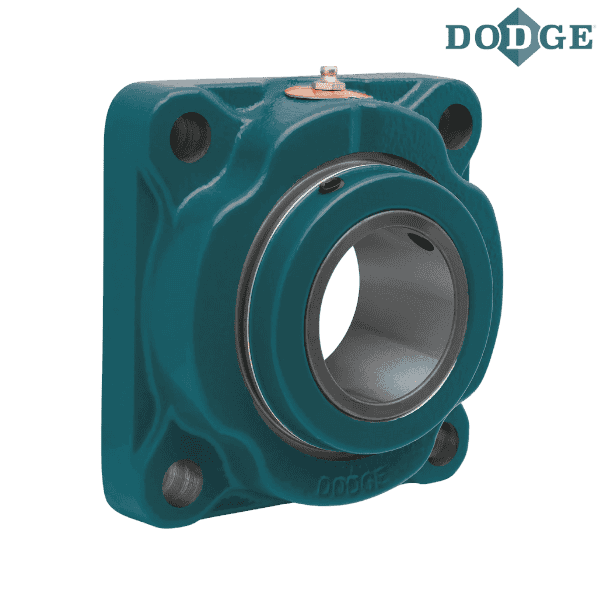

F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore

** Images are for representation purposes only
