Description
Brand - DODGE
Item Number - 048210 DODGE - F4B-UN2-080M
Category - UNISPHERE II Flange - Metric 4-Bolt (Non-Expansion)
Bearing - 22218
Shaft Size (mm) - 80
Part Name - F4B-UN2-080M
Part Number (Expansion) - 048224
Part Name (Expansion) - F4B-UN2-080ME
Approximate Weight (kg) - 11.2

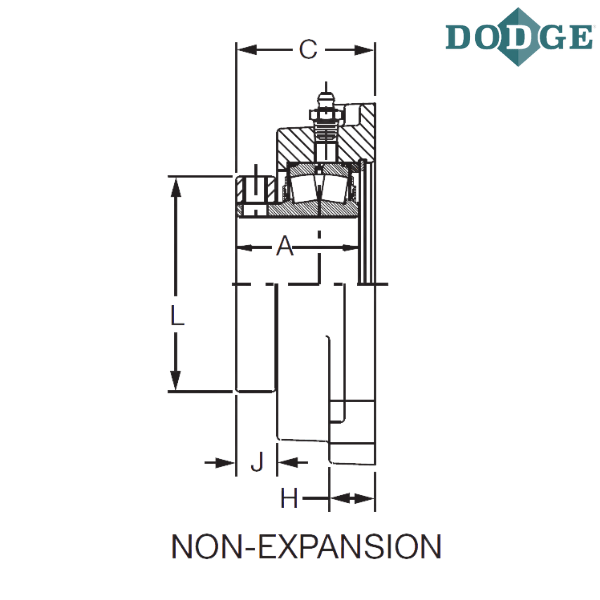

Length Through Bore (A) mm - 73

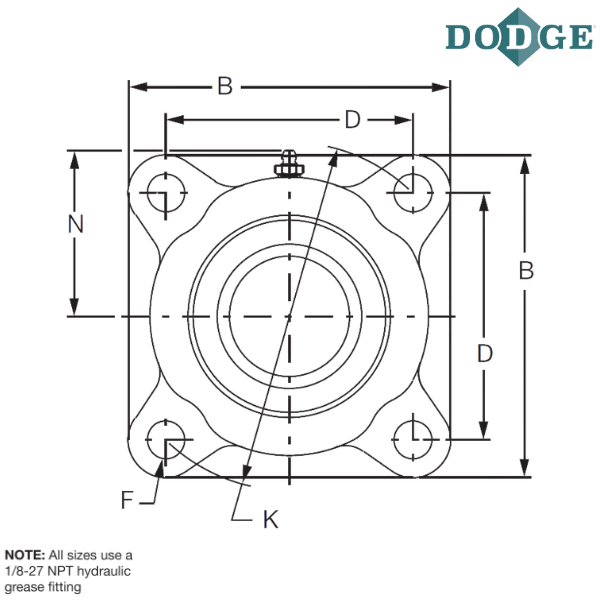

Overall Length (B) mm - 212
Thickness (C) mm - 78
D (mm) - 171
F-Bolt Diameter (mm) - 20
H (mm) - 30
J (mm) - 22
K (mm) - 241
L (mm) - 140

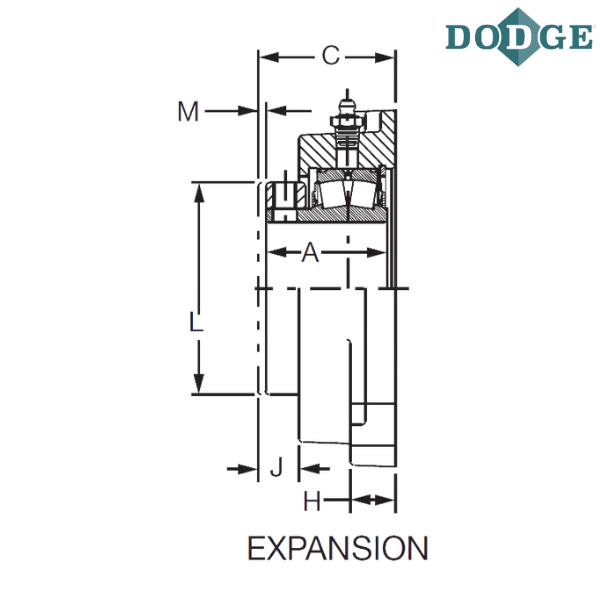

Total Expansion (M) mm - 4.7
N (mm) - 109
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II
M - Metric Bore

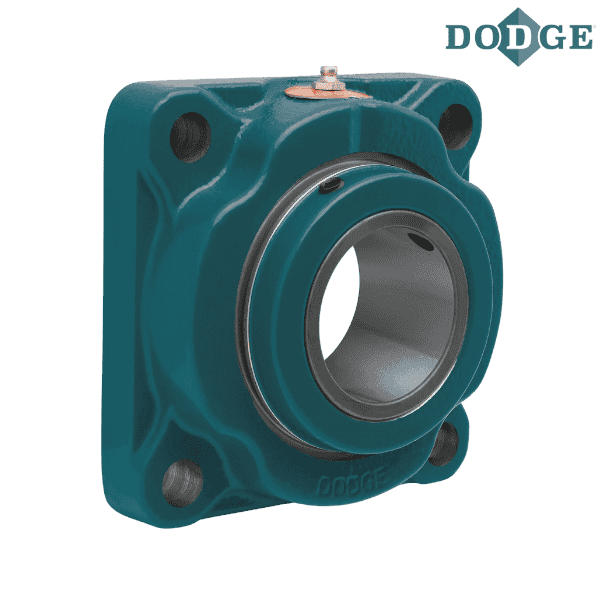

** Images are for representation purposes only
