Description
Brand - DODGE
Item Number - 049709 DODGE - LF-DL-012
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - LF-DL-012
Weight (lbs) - 0.85

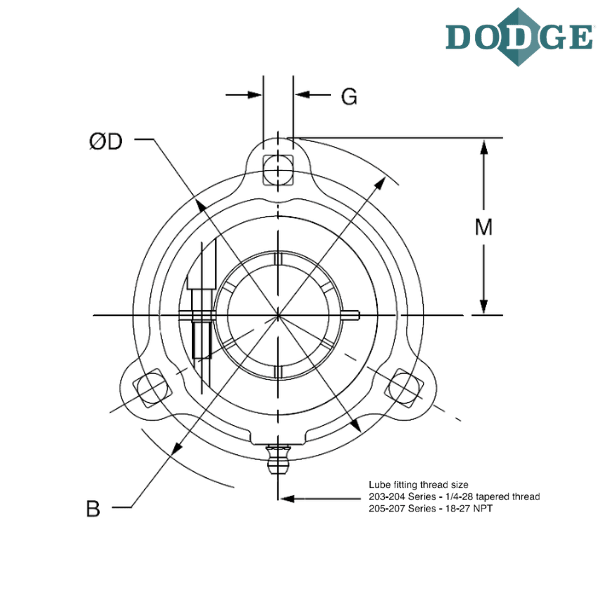

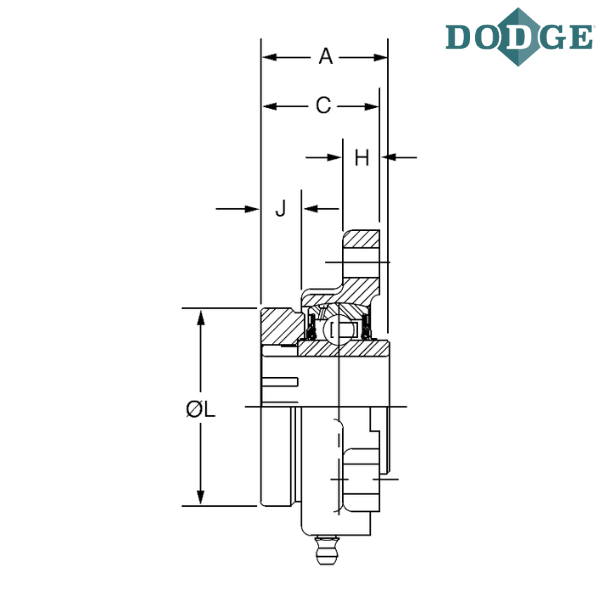

Length Through Bore (A) inch - 1.28
B (inch) - 3.56
C (inch) - 1.27
Bolt Circle (D) inch - 2.81
Bolt Diameter (G) inch - 0.34
H (inch) - 0.42
J (inch) - 0.42
L (inch) - 1.71
M (inch) - 1.78
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

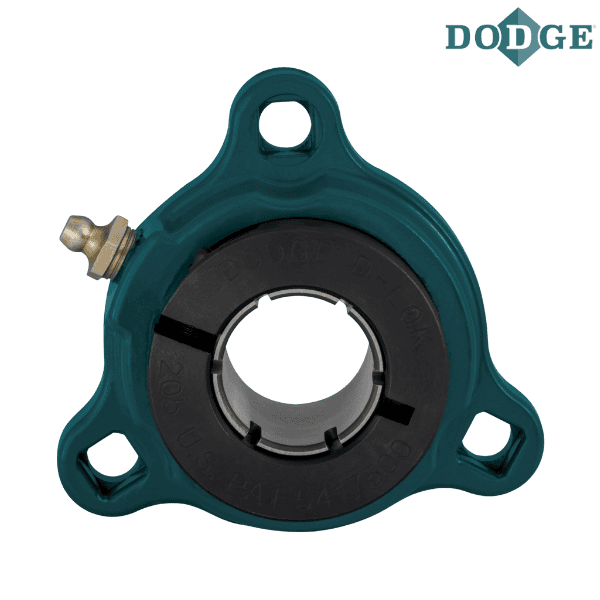

** Images are for representation purposes only
