Description
Brand - DODGE
Item Number - 052535 DODGE - LFT-DL-104S
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - LFT-DL-104S
Weight (lbs) - 1.4

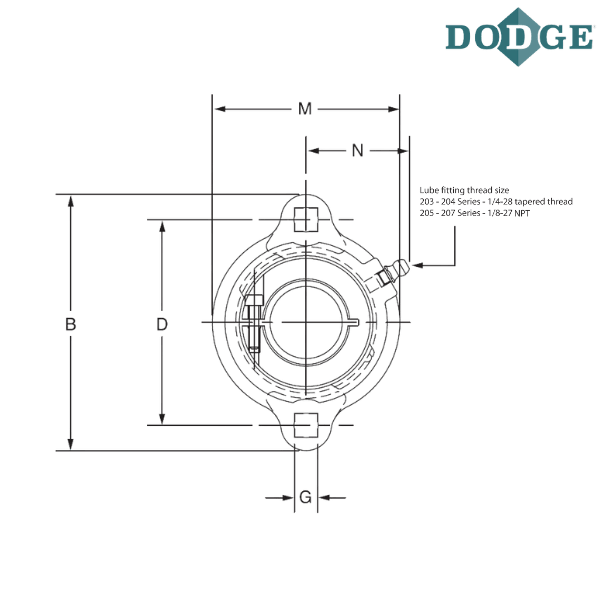

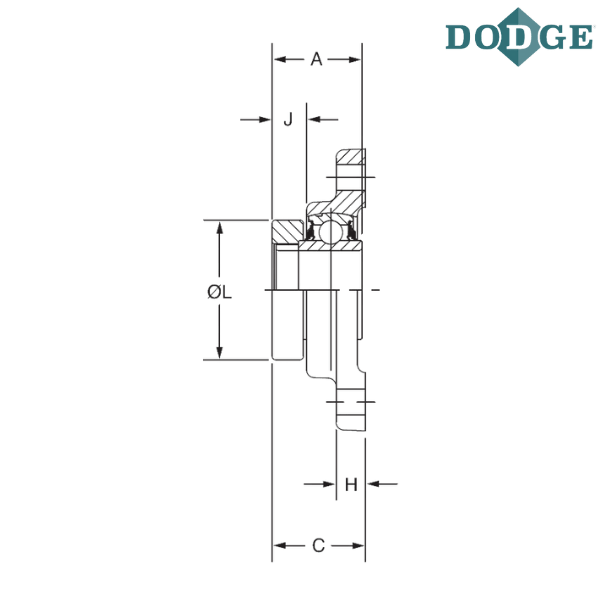

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 112.8
Thickness (C) mm - 38.9
Bolt Center to Center Length (D) mm - 90.4
G (mm) - 10.4
H (mm) - 11.9
J (mm) - 13.7
L (mm) - 56.4
Overall Width (M) mm - 82.6
N (mm) - 43.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar
S - Next smaller ring size

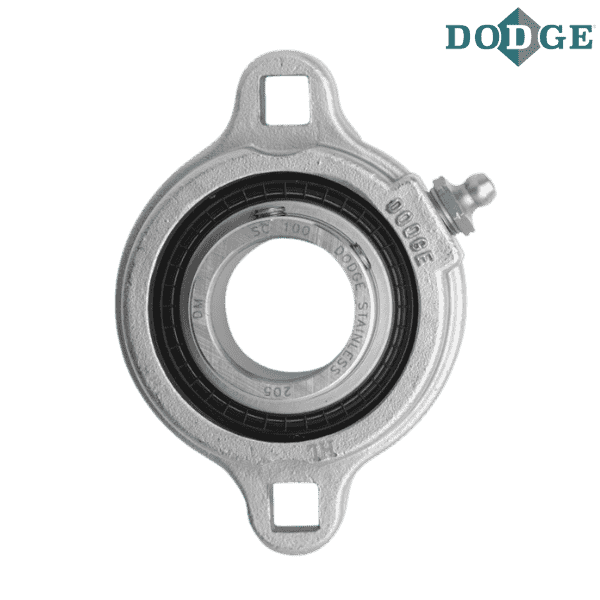

** Images are for representation purposes only
