Description
Brand - DODGE

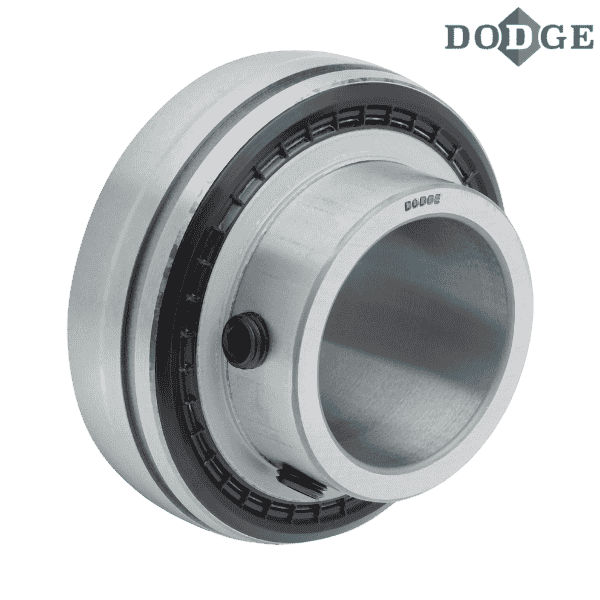

Item Number - 052623 DODGE - INS-SC-40M-FF
Category - E-Z KLEEN Mounted Bearings (SC Normal Duty Bearing Corrosion Resistant Inserts)
Series - 208
Shaft Size (mm) - 40
Description - INS-SC-40M-FF
Part Number (Corrosion Resistant Insert) - 050654
Description (Corrosion Resistant Insert) - INS-SC-40M-CR
Weight (kg) - 0.51

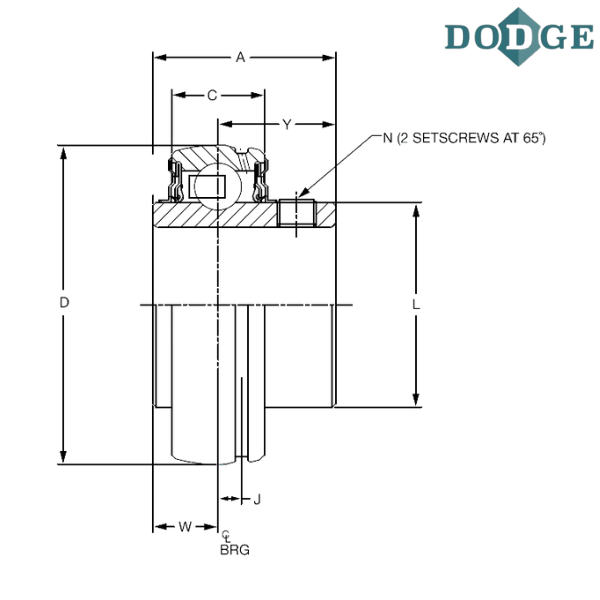

Length Through Bore (A) mm - 49.3
C (mm) - 22.1
Overall Outer Diameter (D) mm - 80
J (mm) - 5.6
L (mm) - 52.1
N (mm) - M8x1.25
W (mm) - 19.1
Y (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
