Description
Brand - DODGE
Item Number - 053219 DODGE - TB-SXR-012
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - TB-SXR-012
Weight (lbs) - 1.5

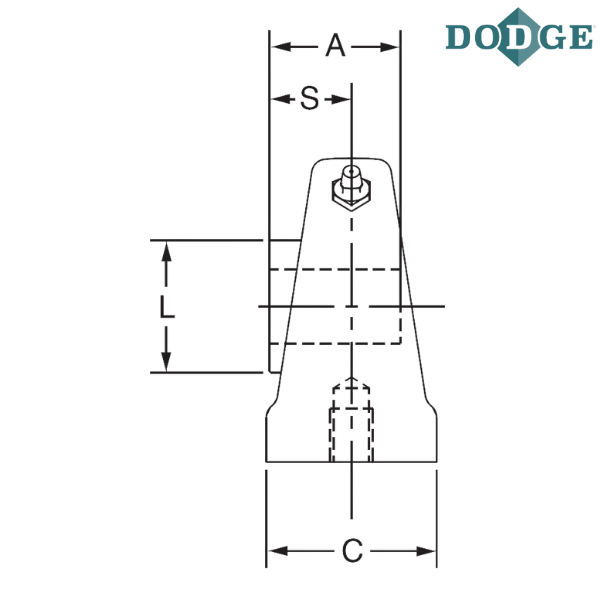

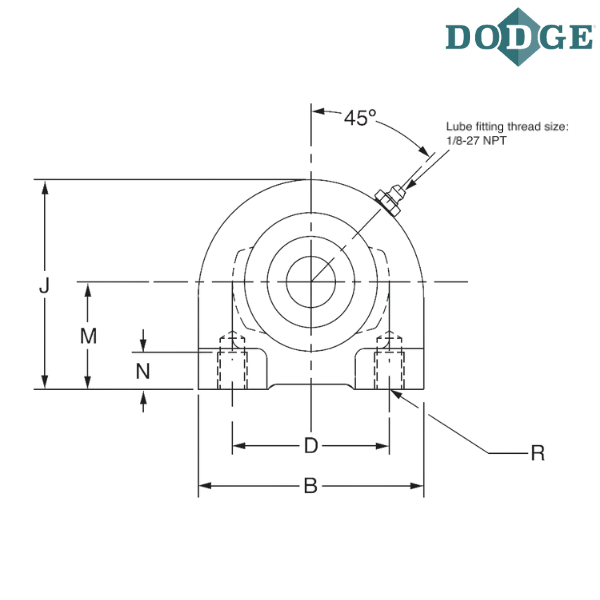

Length Through Bore (A) inch - 1.55
Overall Length (B) inch - 2.88
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.56
L (inch) - 1.31
Base to Center Height (M) inch - 1.31
Minimum Tap Depth (N) inch - 0.5
Bolt Hole UNC-Thread (R) inch - 3/8-16
S (inch) - 1.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar

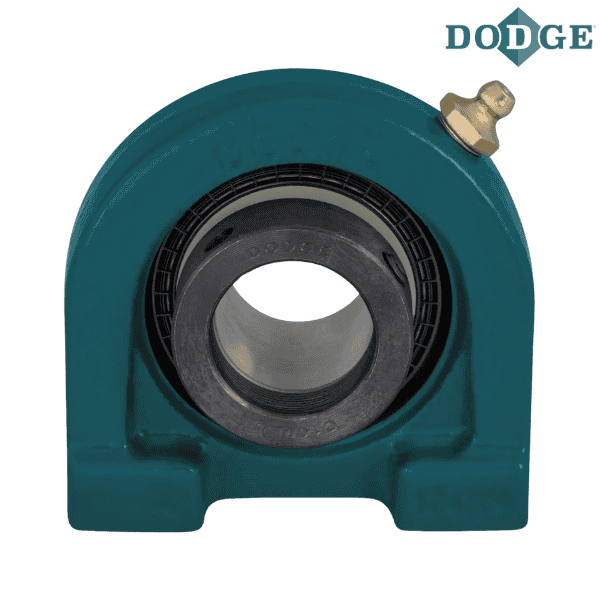

** Images are for representation purposes only
