Description
Brand - DODGE
Item Number - 053411 DODGE - TB-SXR-20M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - TB-SXR-20M
Weight (kg) - 0.6

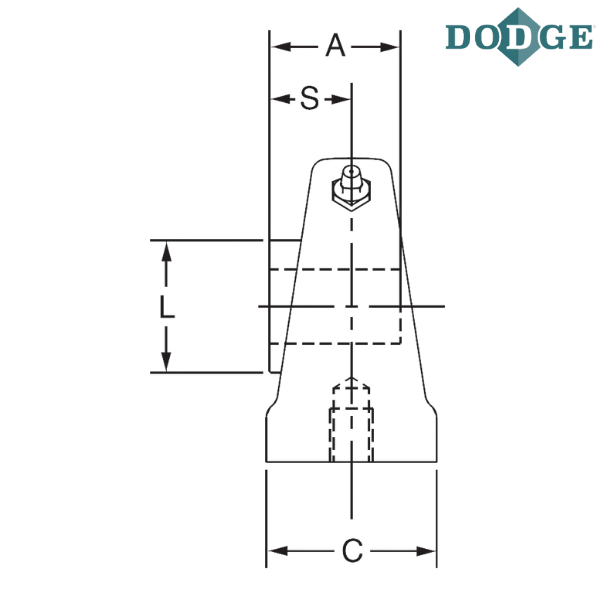

Length Through Bore (A) mm - 39.4

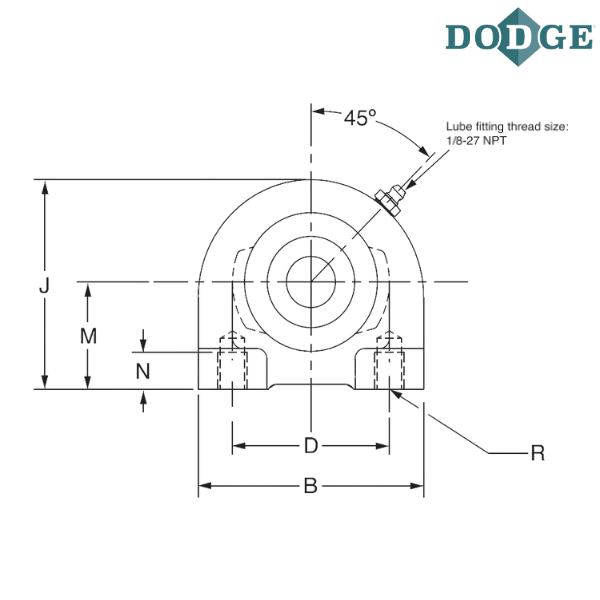

Overall Length (B) mm - 73.2
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 65
L (mm) - 33.3
Base to Center Height (M) mm - 33.4
Minimum Tap Depth (N) mm - 12.7
Bolt Hole UNC-Thread (R) - M8x1.25
S (mm) - 26.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

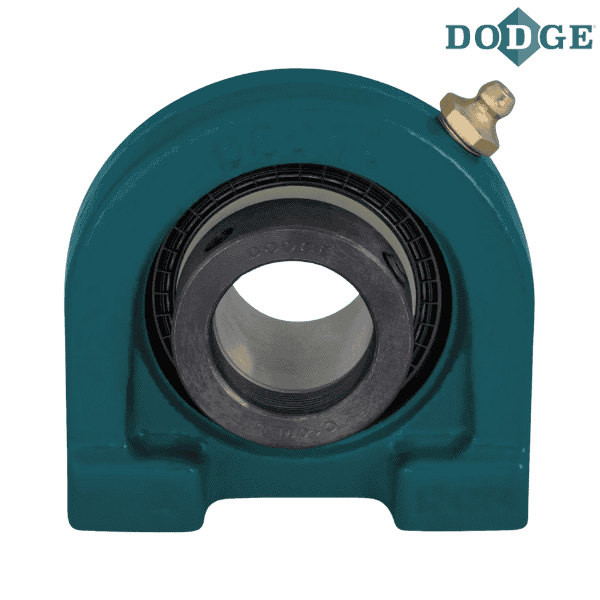

** Images are for representation purposes only
