Description
Brand - DODGE
Item Number - 053413 DODGE - TB-SXR-30M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - TB-SXR-30M
Weight (kg) - 1.1

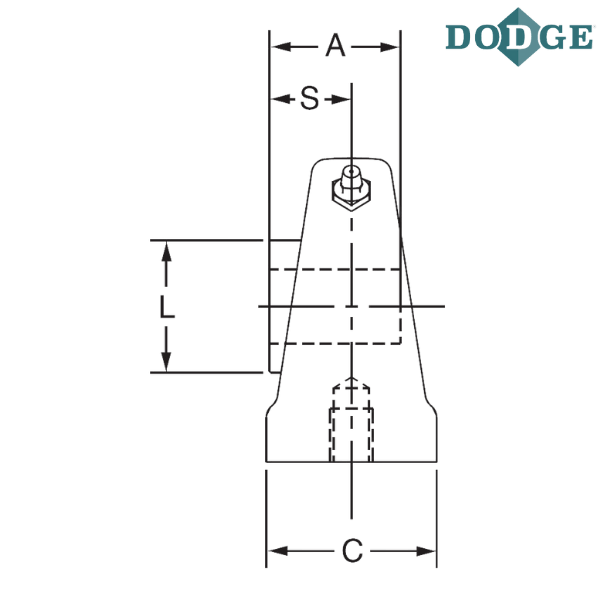

Length Through Bore (A) mm - 45

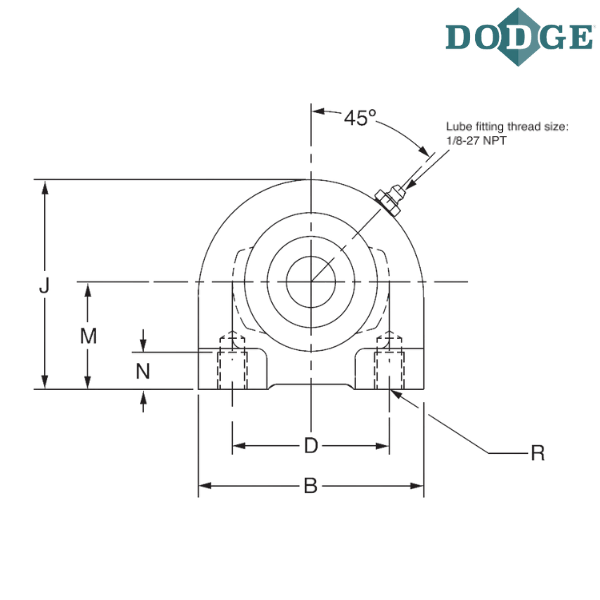

Overall Length (B) mm - 101.6
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 85.9
L (mm) - 44.5
Base to Center Height (M) mm - 42.9
Minimum Tap Depth (N) mm - 16
Bolt Hole UNC-Thread (R) - M10x1.5
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

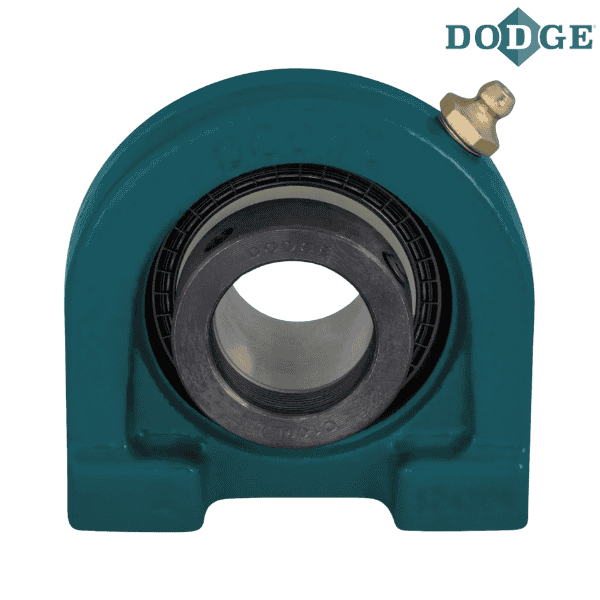

** Images are for representation purposes only
