Description
Brand - DODGE
Item Number - 053414 DODGE - TB-SXR-35M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-SXR-35M
Weight (kg) - 1.4

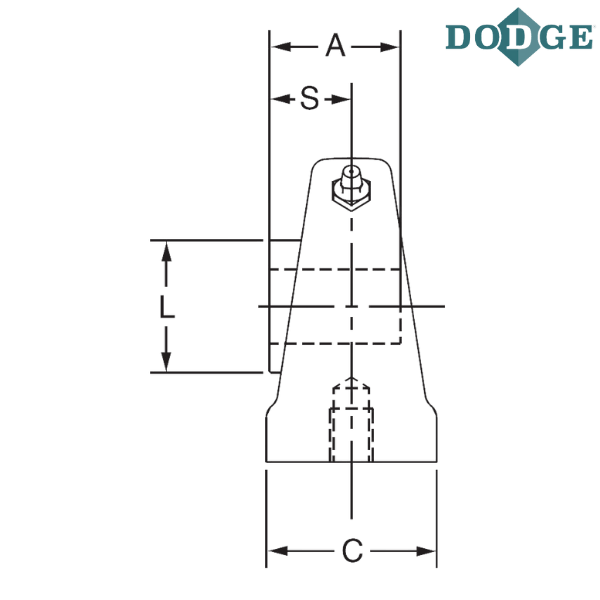

Length Through Bore (A) mm - 49.5

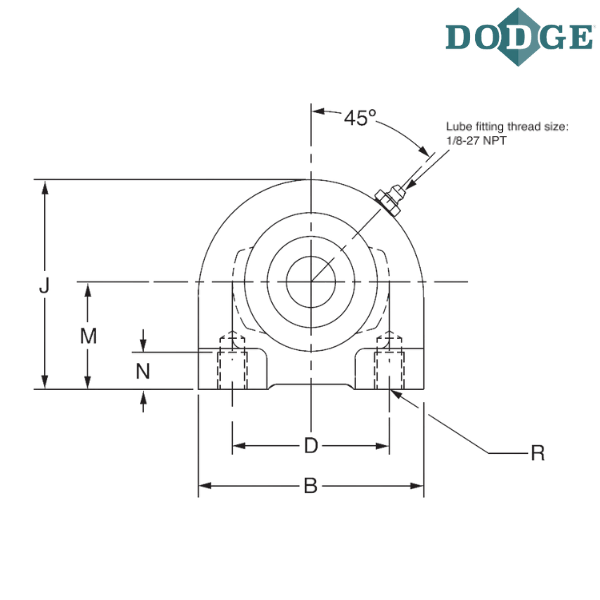

Overall Length (B) mm - 108
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 95.3
L (mm) - 54.1
Base to Center Height (M) mm - 47.6
Minimum Tap Depth (N) mm - 19.1
Bolt Hole UNC-Thread (R) - M10x1.5
S (mm) - 32.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

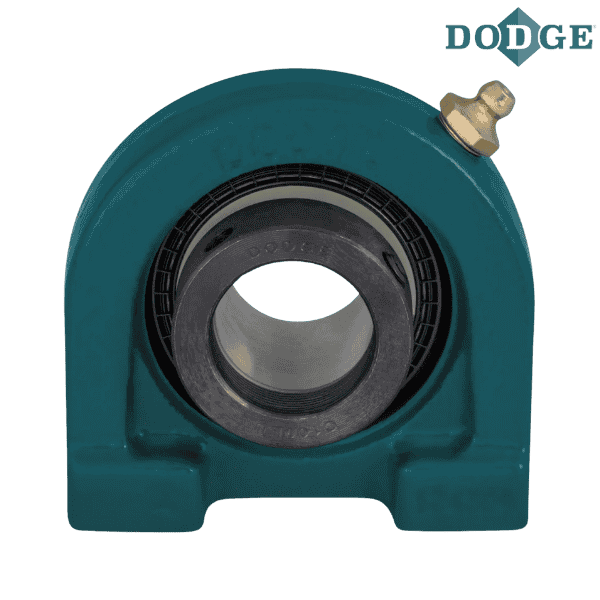

** Images are for representation purposes only
