Description
Brand - DODGE
Item Number - 053417 DODGE - TB-SXR-50M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Tapped Base Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - TB-SXR-50M
Weight (kg) - 2.4

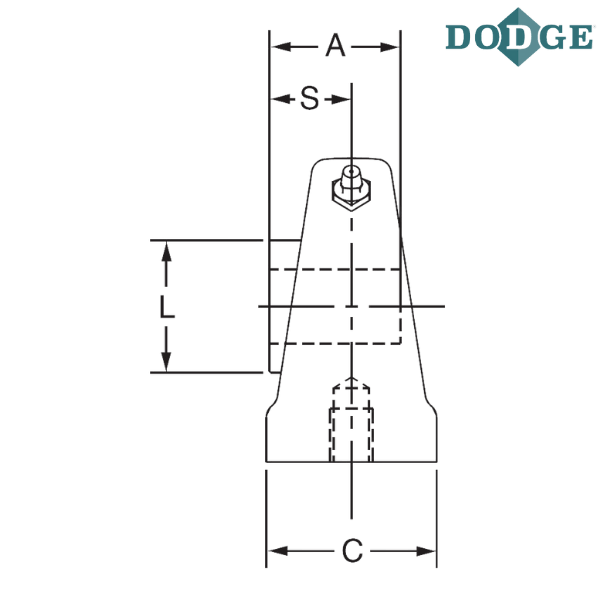

Length Through Bore (A) mm - 57.2

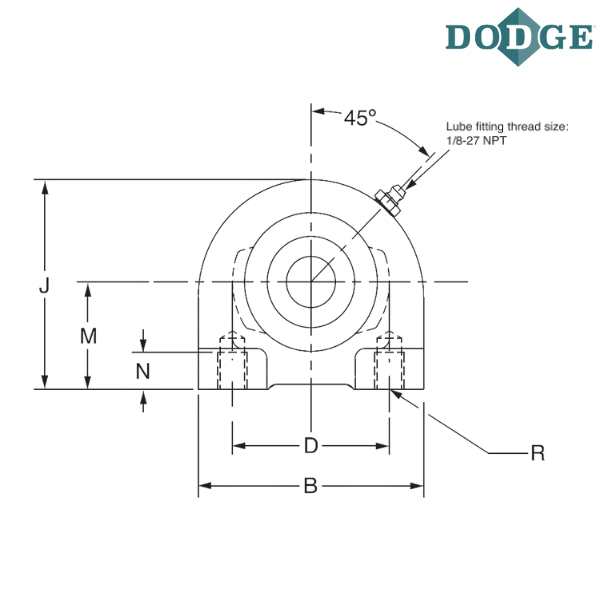

Overall Length (B) mm - 139.7
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 117.6
L (mm) - 69.9
Base to Center Height (M) mm - 57.2
Minimum Tap Depth (N) mm - 22.4
Bolt Hole UNC-Thread (R) - M16x2
S (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

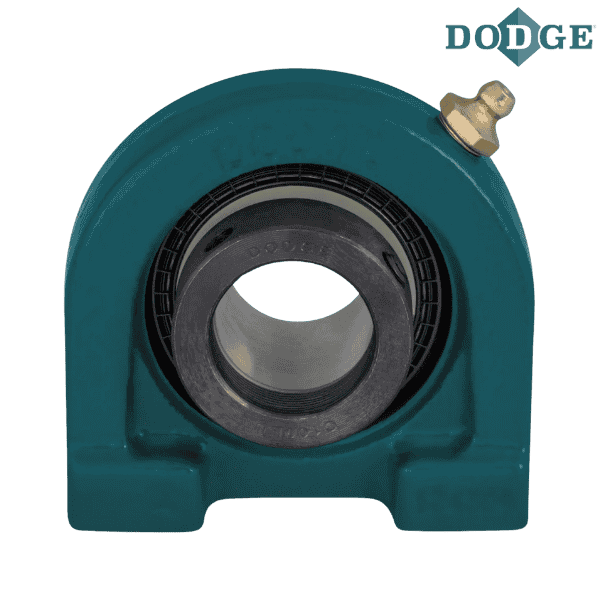

** Images are for representation purposes only
