054065 DODGE - F4B-SCM-200-HT

Brand - DODGE
Item Number - 054065 DODGE - F4B-SCM-200-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 211
Description - F4B-SCM-200-HT
Shaft Size (inch) - 2
Weight (lbs) - 9.3

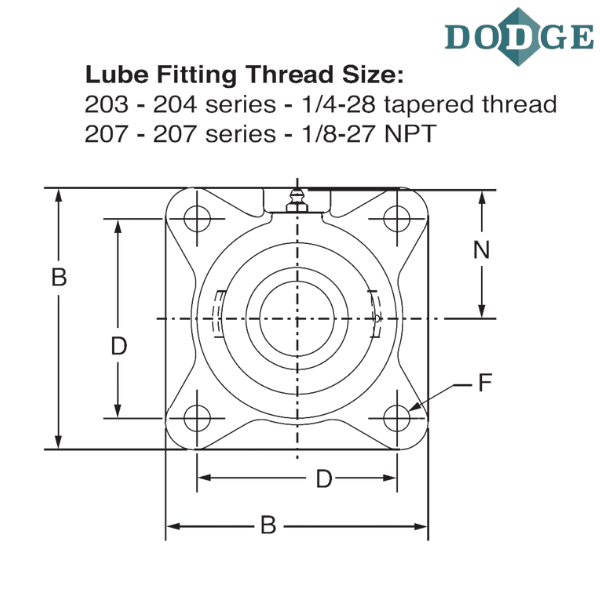

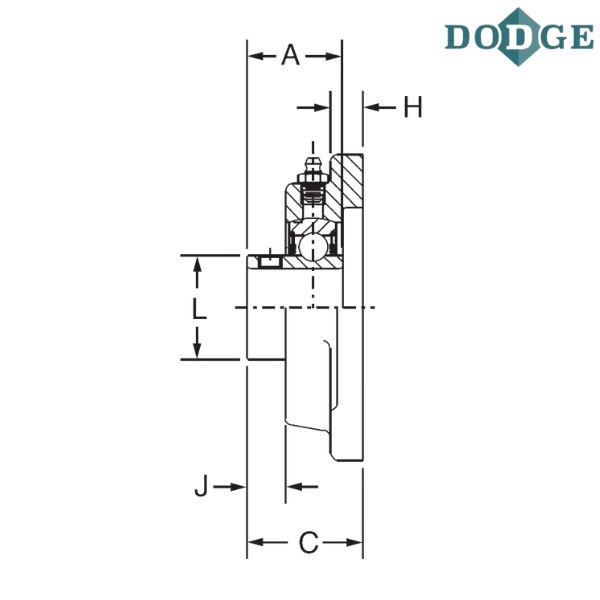

Length Through Bore (A) inch - 2.22
Overall Length (B) inch - 6.5
Thickness (C) inch - 2.28
Bolt Center to Center Length (D) inch - 5.13
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.69
J (inch) - 0.68
L (inch) - 2.71
N (inch) - 3.25

Notes :
F4B - 4-bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

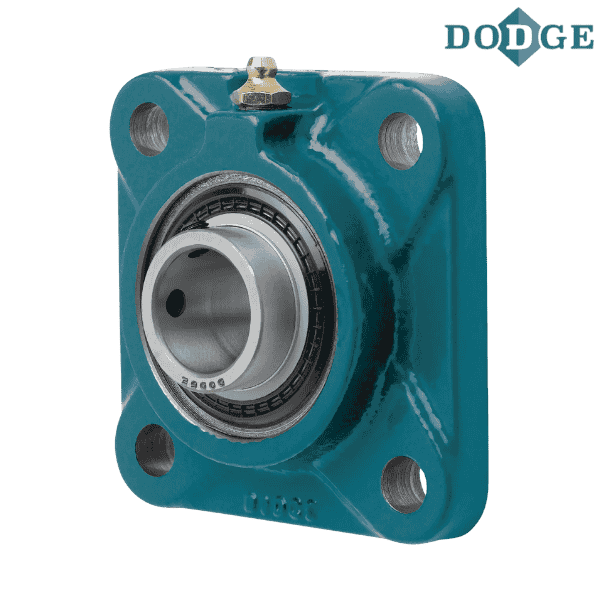

** Images are for representation purposes only
