Description
Brand - DODGE
Item Number - 056780 DODGE - LF-DL-103
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 3-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - LF-DL-103
Weight (lbs) - 1.6

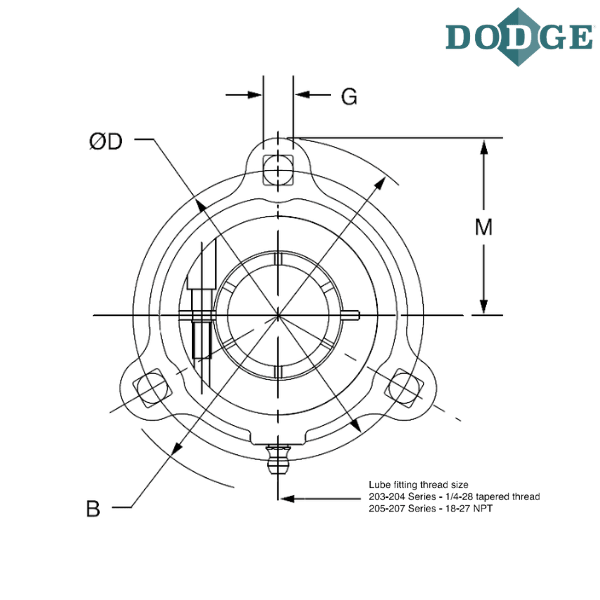

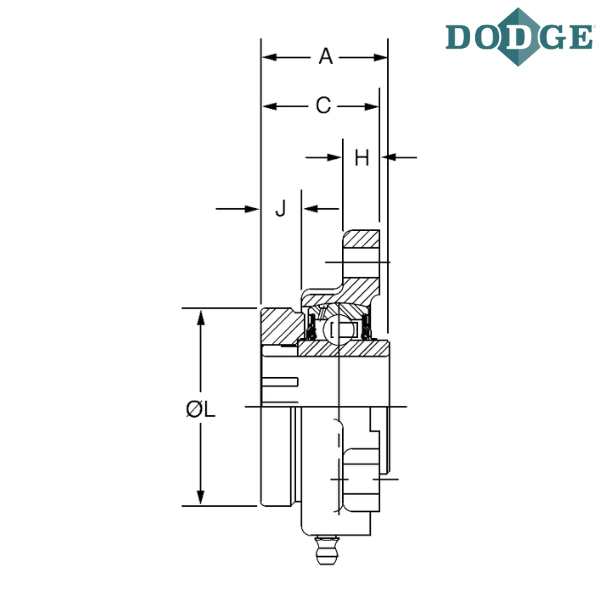

Length Through Bore (A) inch - 1.56
B (inch) - 4.44
C (inch) - 1.53
Bolt Circle (D) inch - 3.56
Bolt Diameter (G) inch - 0.41
H (inch) - 0.47
J (inch) - 0.54
L (inch) - 2.22
M (inch) - 2.22
N (inch) - 2.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - Light duty flange, 3-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

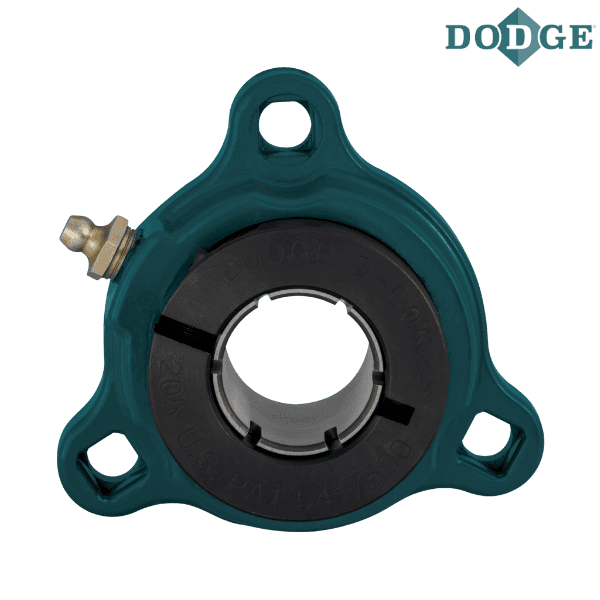

** Images are for representation purposes only
