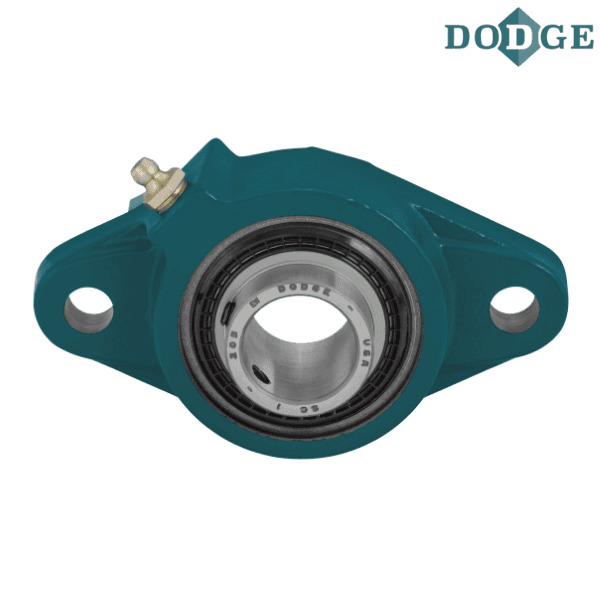

056864 DODGE - F2B-SC-015-HT

Brand - DODGE
Item Number - 056864 DODGE - F2B-SC-015-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 205
Description - F2B-SC-015-HT
Shaft Size (inch) - 0.9375
Weight (lbs) - 1.5

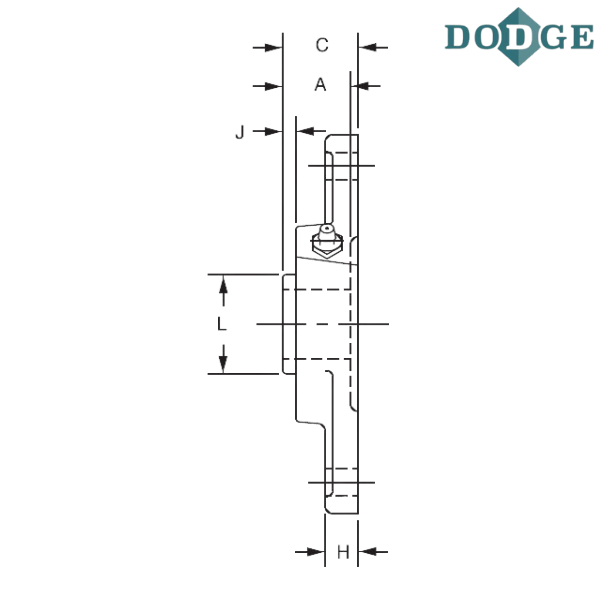

Length Through Bore (A) inch - 1.34

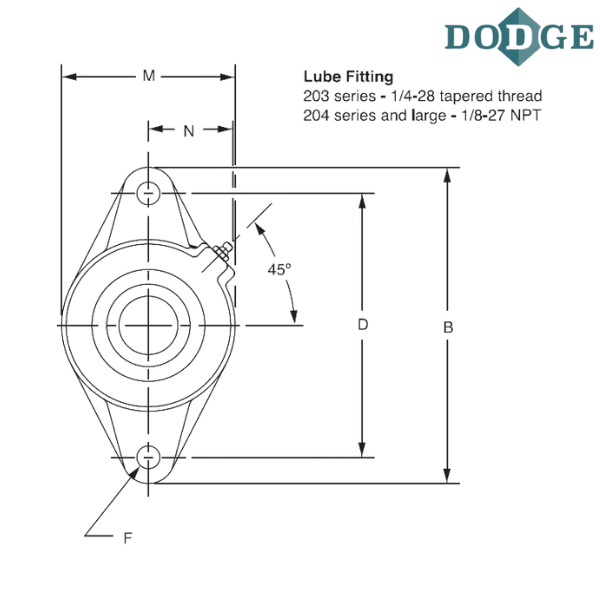

Overall Length (B) inch - 4.88
Thickness (C) inch - 1.37
Bolt Center to Center Length (D) inch - 3.89
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.52
J (inch) - 0.42
L (inch) - 1.32
Overall Width (M) inch - 2.75
N (inch) - 1.44

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
